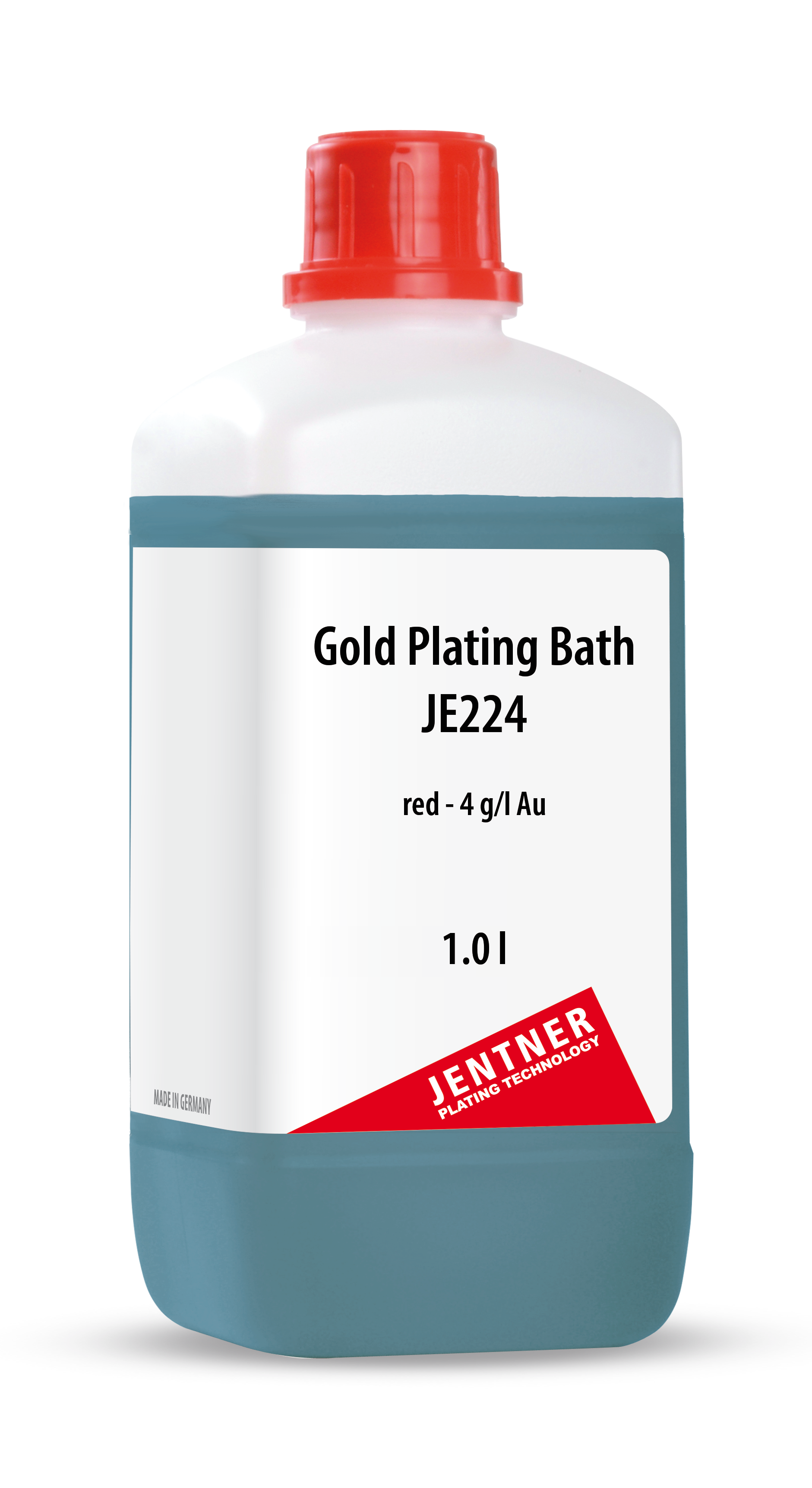

Gold Plating Bath red JE224 - 4 g/L Au
€714.54
Content:
1 Piece
Our payment methods:
Paid in advance
Invoice
PayPal
Mastercard
VISA
Product number:
7255.1000
Delivery time:
1-3 days
Your advantages with Jentner
- Fast shipping
- Made in Germany
- Secure DHL shipping
Product information "Gold Plating Bath red JE224 - 4 g/L Au"
The red gold plating bath JE224 is a neutral gold electrolyte with a stable pH value that works without free cyanide. The electrolyte is used for deposition of 18-carat red gold-copper coatings.
It is suitable for technical and decorative applications as the deposited layers are very hard and abrasion-resistant. Despite gold-saving coatings with a low carat, the electrolyte has very good corrosion and tarnish resistance. Under optimal conditions, high-gloss and adhesive gold layers up to max. 10 μm thickness can be achieved.
Operating data:
Gold content: 4 g/L (3,5-4,5)
Copper content: 3 g/L (2,5-3,5)
pH value:7,5 (7,2-8,0)
Density: > 1,07 g/ml
Operating conditions:
Voltage: 1,6 V (1,4-1,8)
Bath temperature: 57 °C (55-60)
Anodes: Platinized Titanium / /mixed oxid
Goods movement: required
Anode-/cathode surface: 2:1
Deposition rate: approx. 45 mg/Amin
Power density: approx. 0,3 A/dm2 (0,1-0,5)
Bath filtration: from 10 Liter
Deposition data:
Hardness: 380 - 400 HV
Layer thickness: max. 10 μm
It is suitable for technical and decorative applications as the deposited layers are very hard and abrasion-resistant. Despite gold-saving coatings with a low carat, the electrolyte has very good corrosion and tarnish resistance. Under optimal conditions, high-gloss and adhesive gold layers up to max. 10 μm thickness can be achieved.
Operating data:
Gold content: 4 g/L (3,5-4,5)
Copper content: 3 g/L (2,5-3,5)
pH value:7,5 (7,2-8,0)
Density: > 1,07 g/ml
Operating conditions:
Voltage: 1,6 V (1,4-1,8)
Bath temperature: 57 °C (55-60)
Anodes: Platinized Titanium / /mixed oxid
Goods movement: required
Anode-/cathode surface: 2:1
Deposition rate: approx. 45 mg/Amin
Power density: approx. 0,3 A/dm2 (0,1-0,5)
Bath filtration: from 10 Liter
Deposition data:
Hardness: 380 - 400 HV
Layer thickness: max. 10 μm
Content: 1 liter
Hazard warnings
H319 Causes serious eye irritation.
H412 Harmful to aquatic life with long lasting effects.
Safety instructions
P264.1 Wash hands thoroughly after handling.
P273 Avoid release to the environment.
P280 Wear protective gloves/protective clothing/eye protection/face protection.
P305+351+338 jentner.statements.P305+351+338
P337+313 jentner.statements.P337+313
P501.9 jentner.statements.P501.9
