For electroplating applications
Electroplating equipment and accessories
By owning your own small electroplating shop, you save yourself the time-consuming process in a contract electroplating shop and can electroplate according to your own requirements at any time. With simple operation, we guarantee you a reliable surface coating.

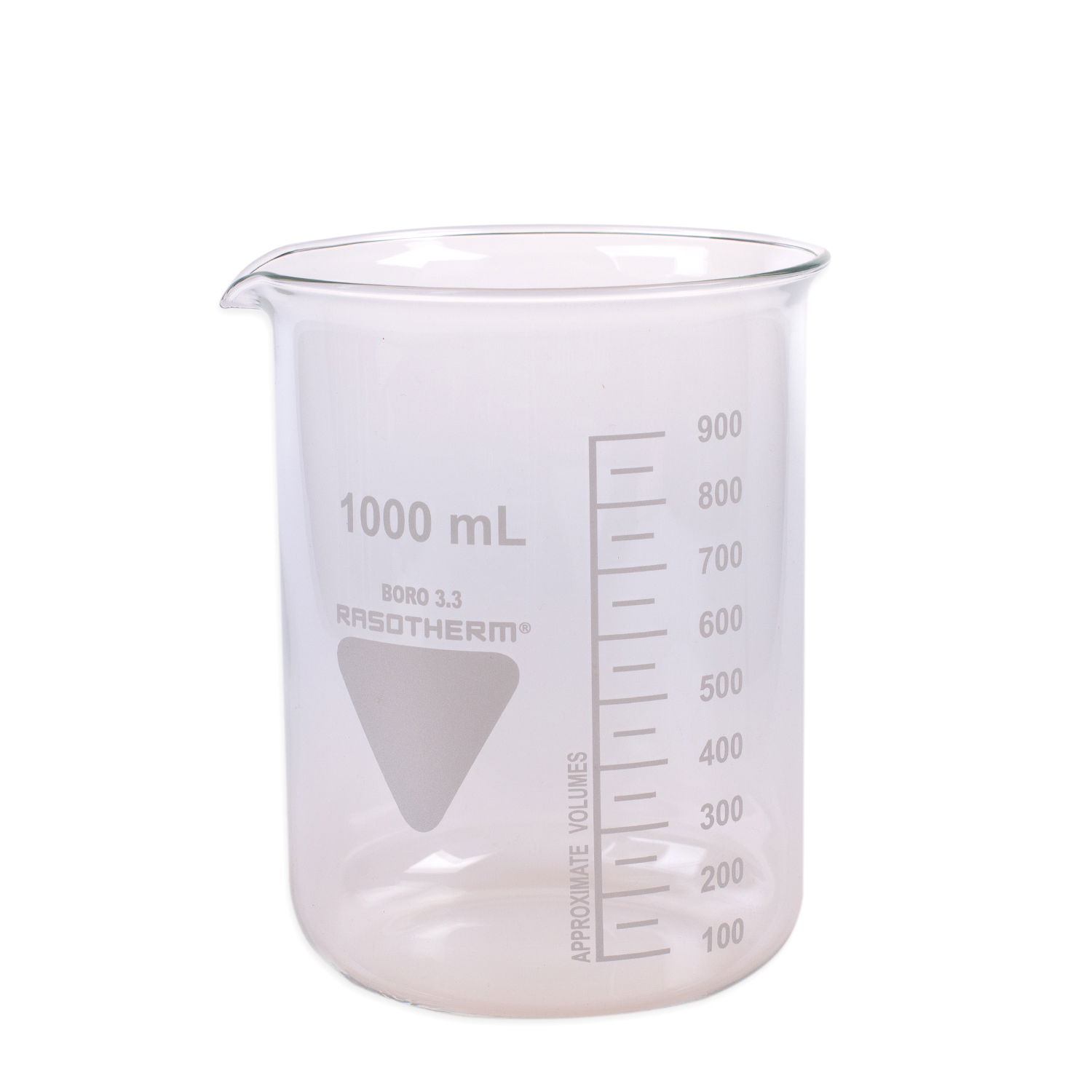

This Beaker with a volume of 1000 ml is suitable for our Rhodium Machine RMGo!.

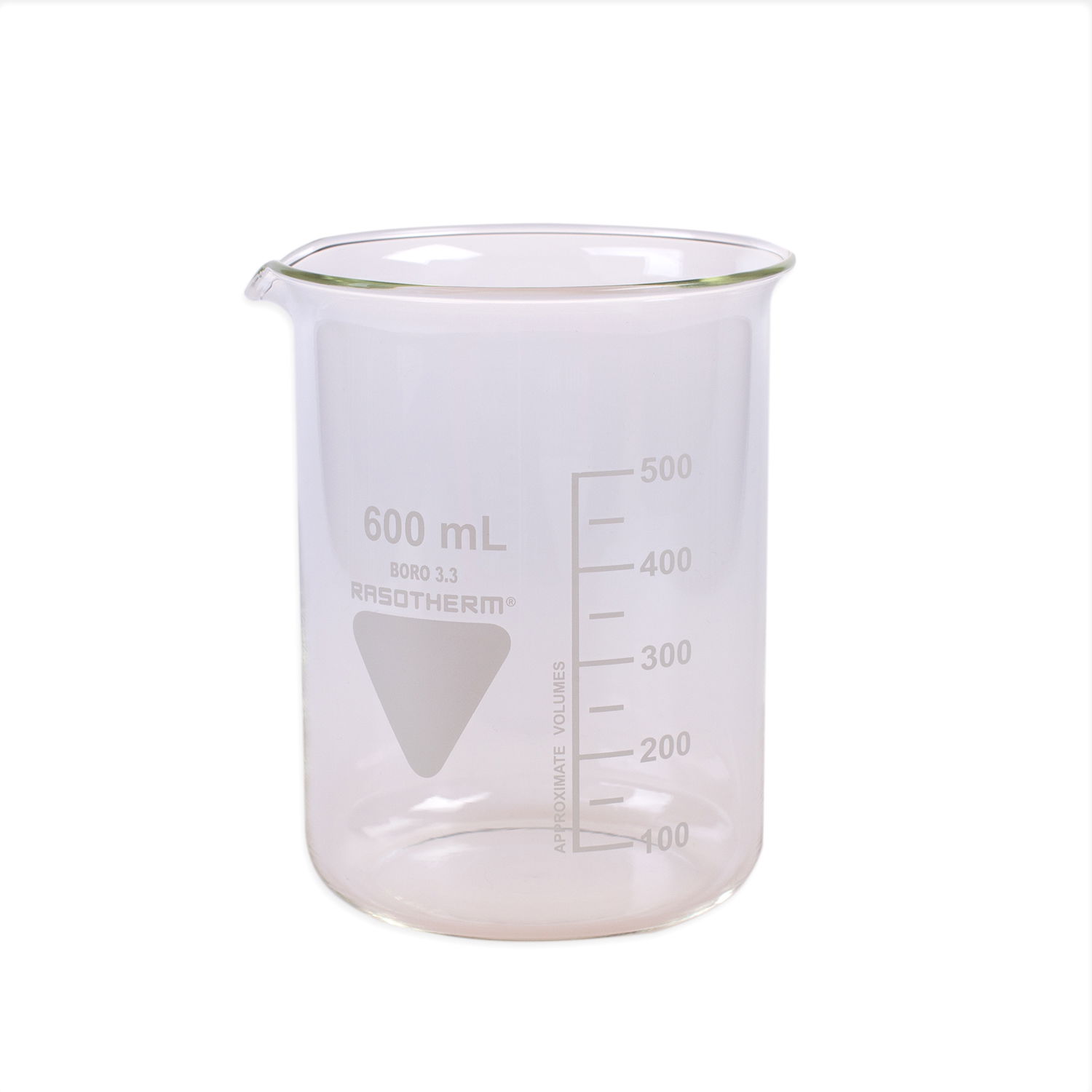

This beaker with a volume of 600 ml is suitable for our Rhodium Machine RMGo!.

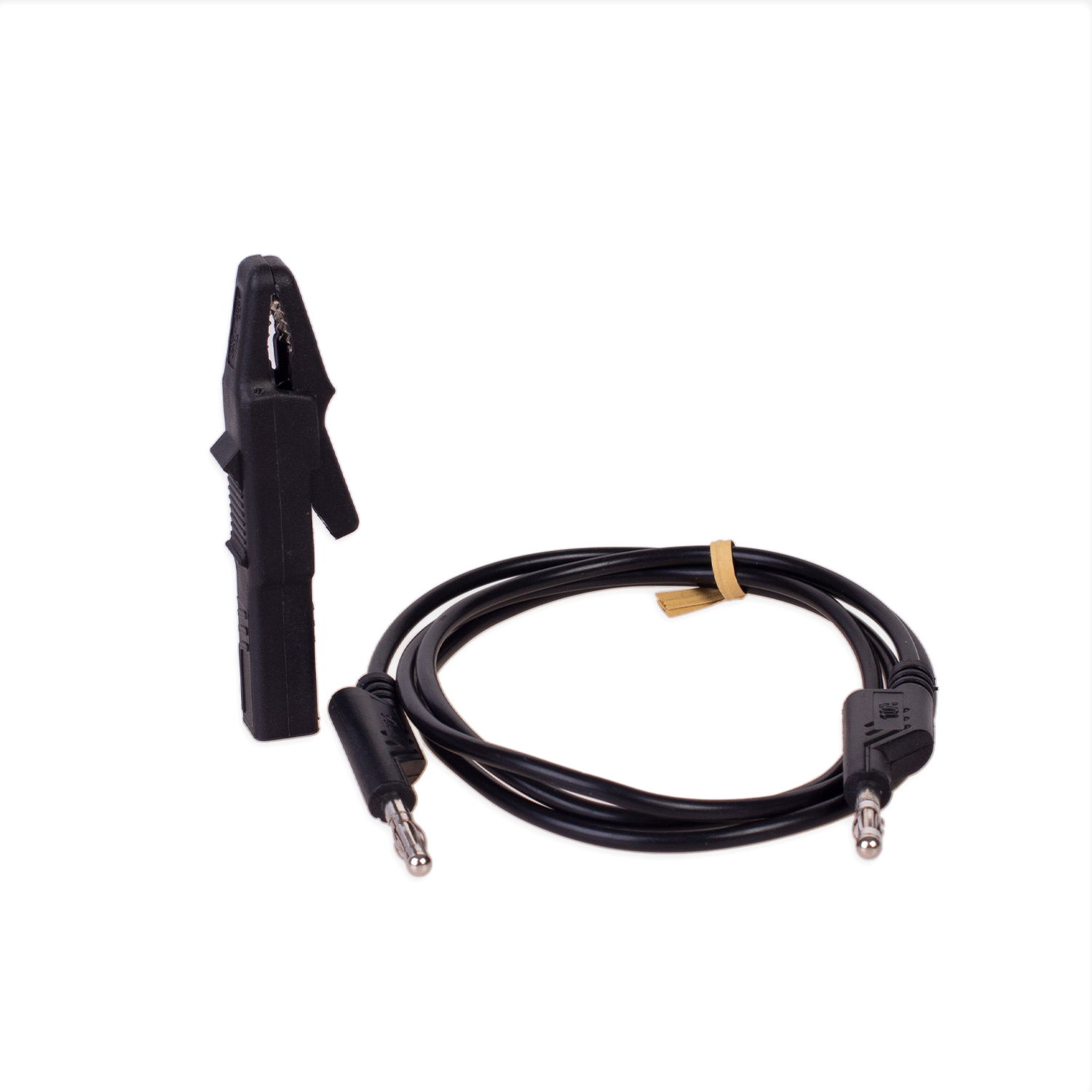

This black cable with clamp is suitable for our Rhodium Machine RMGo!.

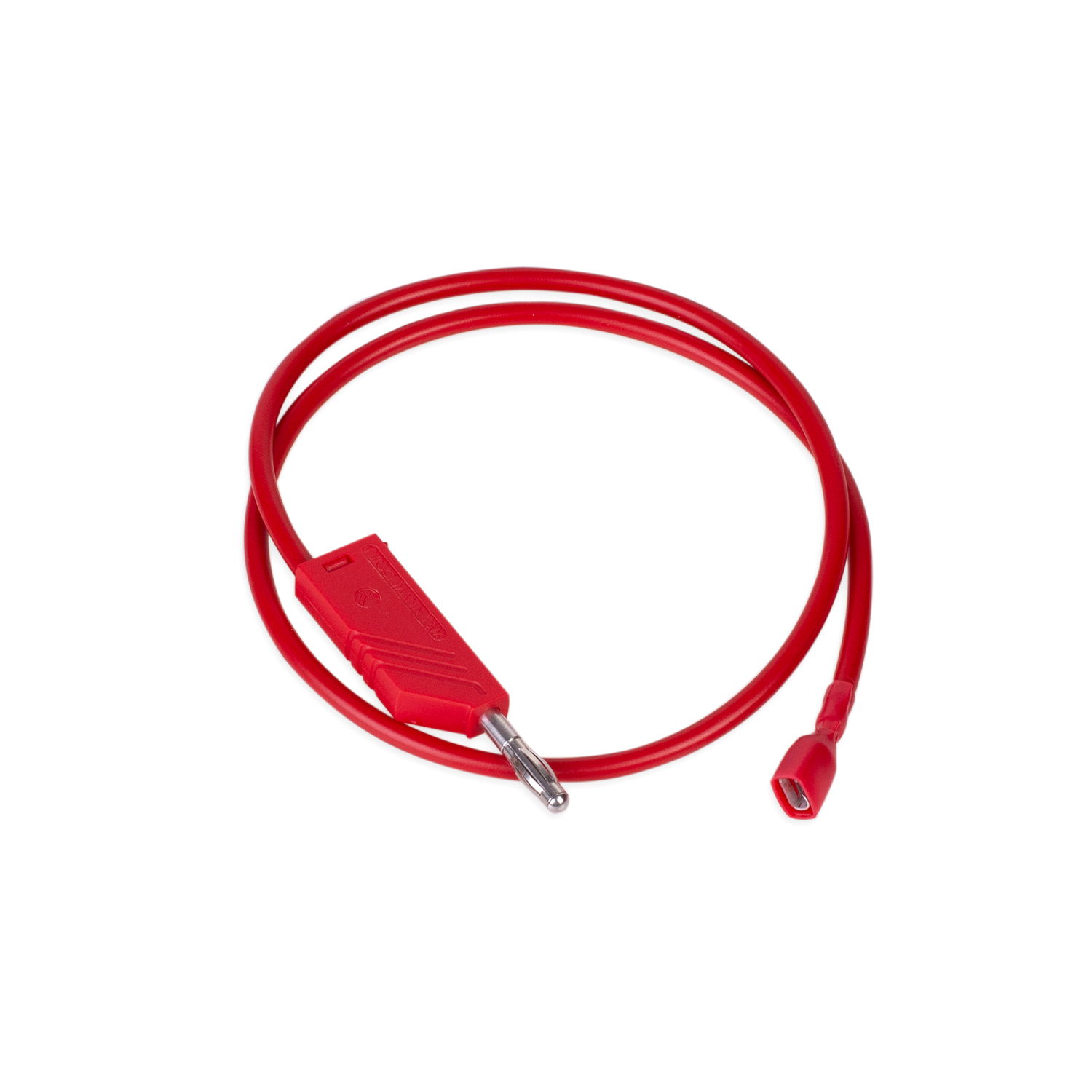

This red cable suitable for the Rhodium Machine RMGo!

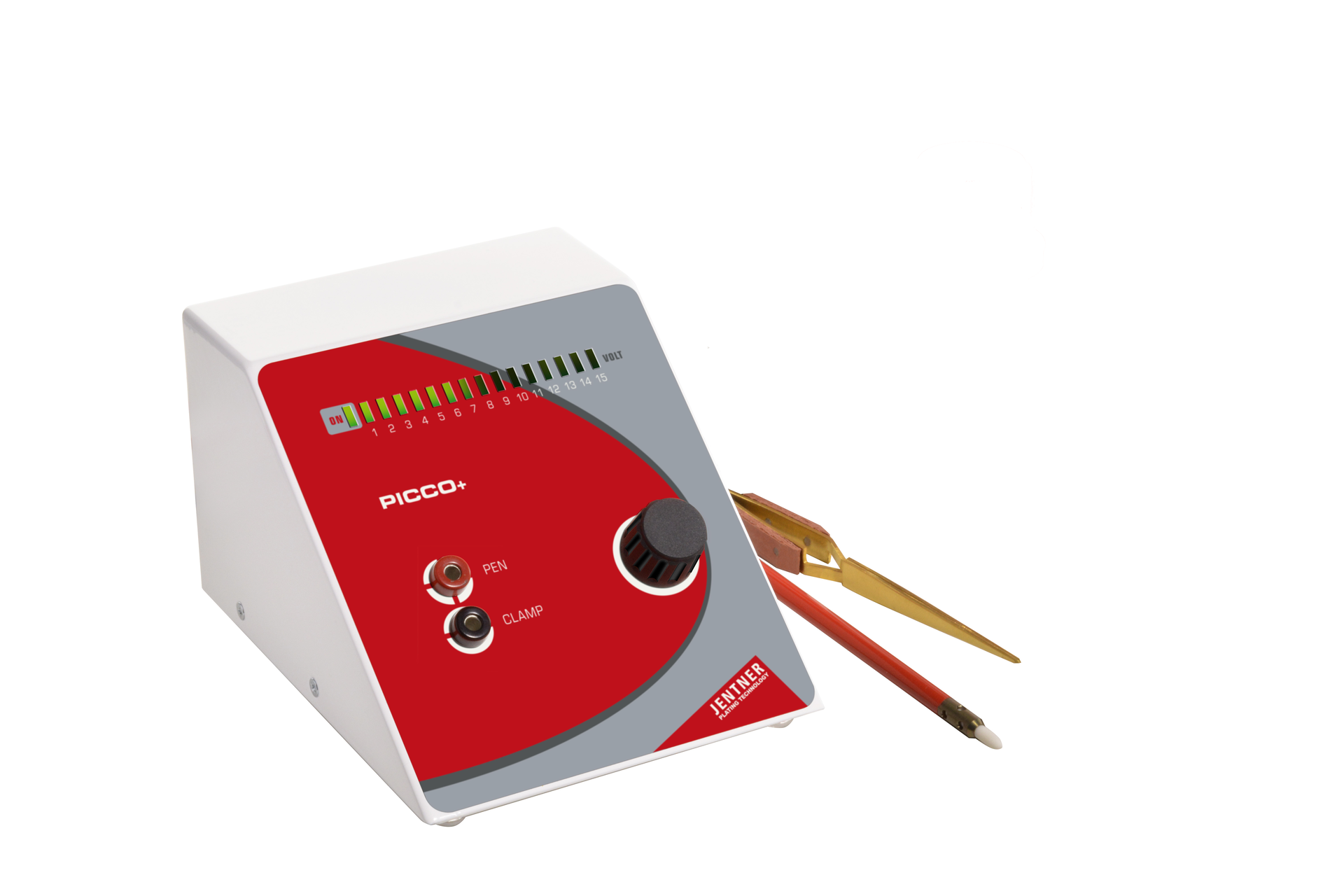

The pen plating unit type PICCO+ allows a fast and spotless application of rhodium, gold and silver on small items. The handling is easy and clear, due to a helpful LED display.Scope of delivery:1x Pen plating unit type PICCO+1x Handpiece MOX1x Tweezer1x Felt tips square, brown (10 pc)Technical data:Case: Stainless steel caseDimensions (LxDxH): 120x150x95 mmVoltage supply: 12V/ 50HzWeight: 1,5 kg

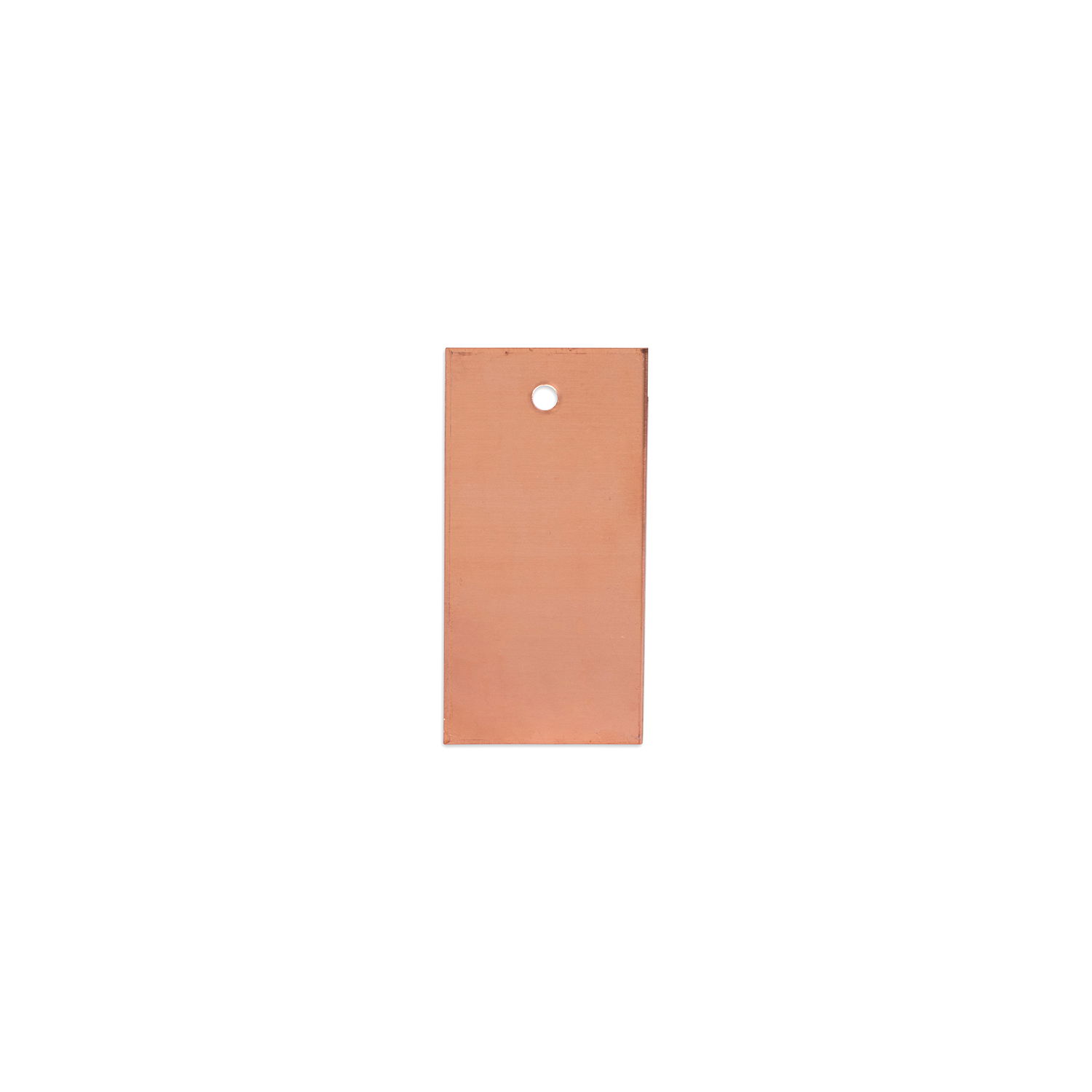

Copper anode 150x50x3 mm for Digital V or 5 liter tanks. These anodes are suitable for copper baths. Please note that the fixation is not included in the delivery. They have to be ordered separately.

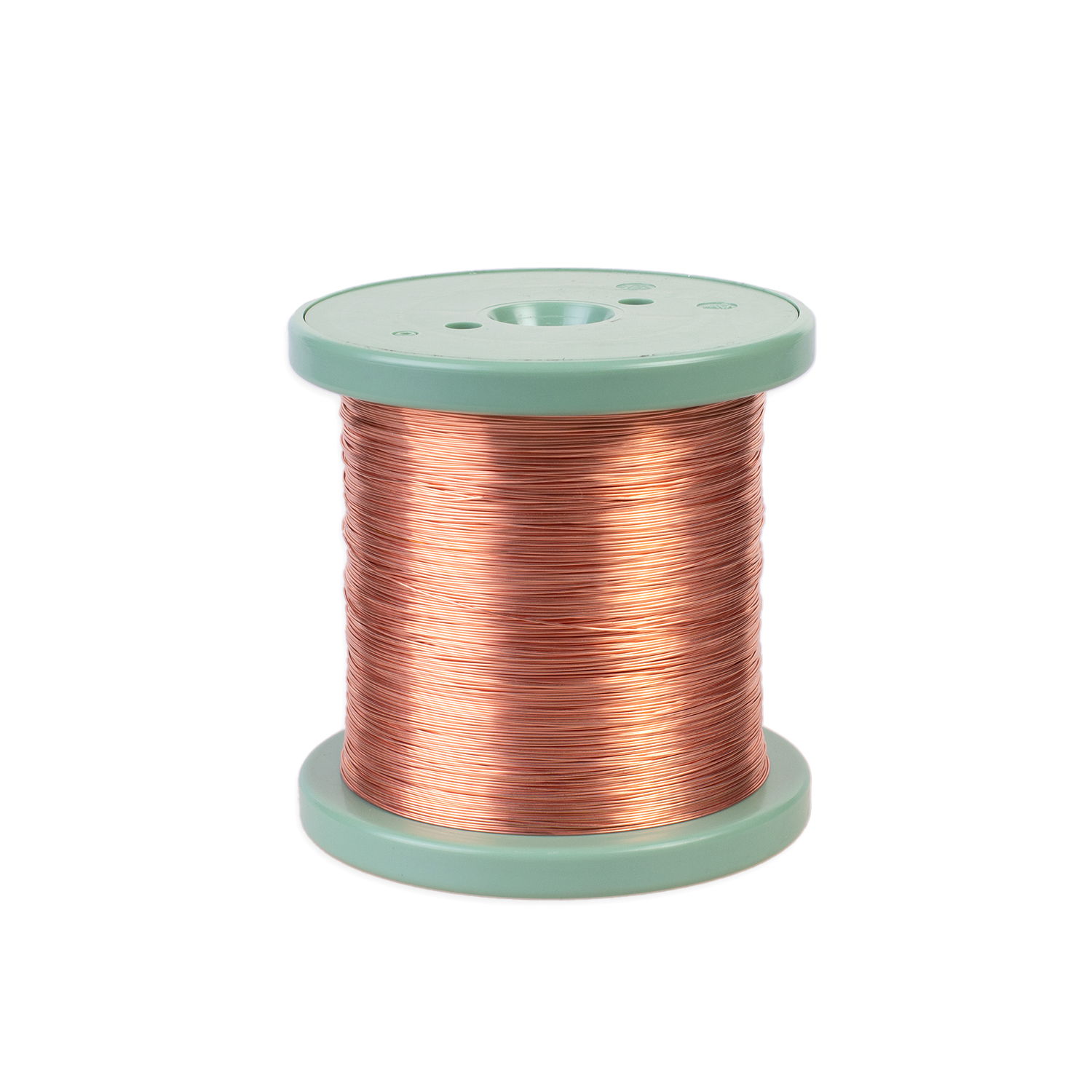

Copper wire 0,5 mm bare, flexible (1 kg) to tie on small pieces.

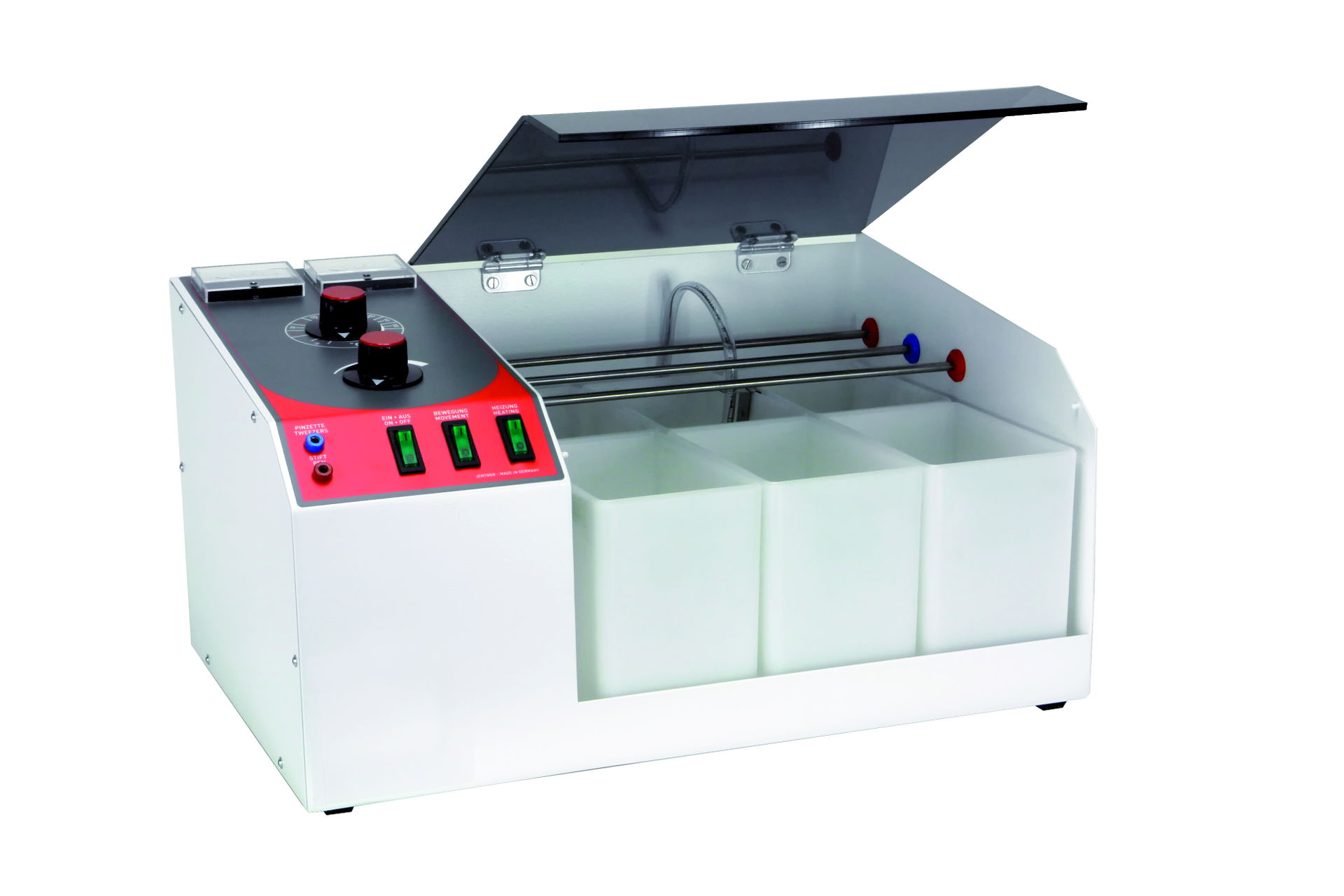

The small-size electroplating unit Comfort II can be used for all current plating solutions. The machine guarantees an easy, efficient and secure processing. Furthermore, the Comfort II has an integrated thermostatic control unit and integrated goods movement. Additionally, it has a pen plating connection. The cover plate is transparent and can be closed all around. Technical data:Dimensions (WxDxH): 480x300x260 mmWeight: 16 kgRectifier: 15V/ 15ABath volume: 3x 1,5 l working tanks + 3x 1,5 l rinsing tanks Bath dimensions: 150x100x150mmControlled heating: 200WSupply voltage: 230V/ 50HzOptional equipment:1x connectable heater (200W)

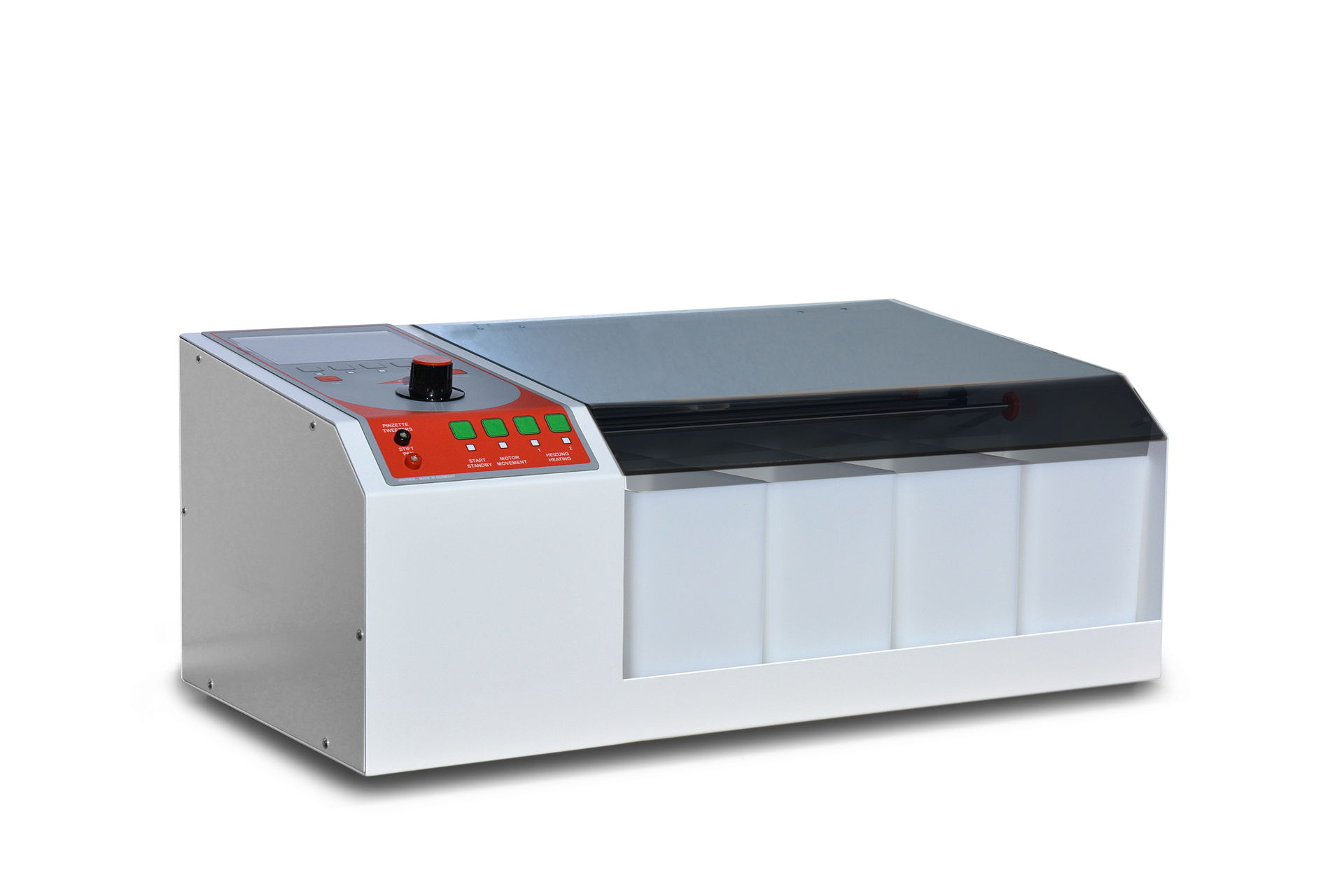

The Digital II version 2.0 is a programmable small-size electroplating unit which can be used for all current precious metal and non precious metal processes. The machine is characterized by it's user friendliness and the easy handling.The digital display of voltage, tension and temperature guarantees a careful and secure working. The integrated timer stops processes automatically and the ampere minute counter helps to calculate the precious metal consumption. In addition to pre installed plating programs, new programs can be installed. The machine menu is available in several european languages. Digital II version 2.0 has an integrated goods movement and a pen plating connection.Technical data:Dimensions (WxDxH): 600x323x240 mm Weight: 18 kgBath volume: 4x1,5 l working tanks + 4x 1,5 l rinsing tanksBath dimensions: 150x100x150 mmRectifier: 15V/ 15AControlled heating: 2x200WSupply voltage: 230V/ 50Hz, 120V/ 60HzMain fuse: 2,5A slow-blow, 250V ~, 5*20 mmOptional equipment: 2x connectable heater (2x200W)

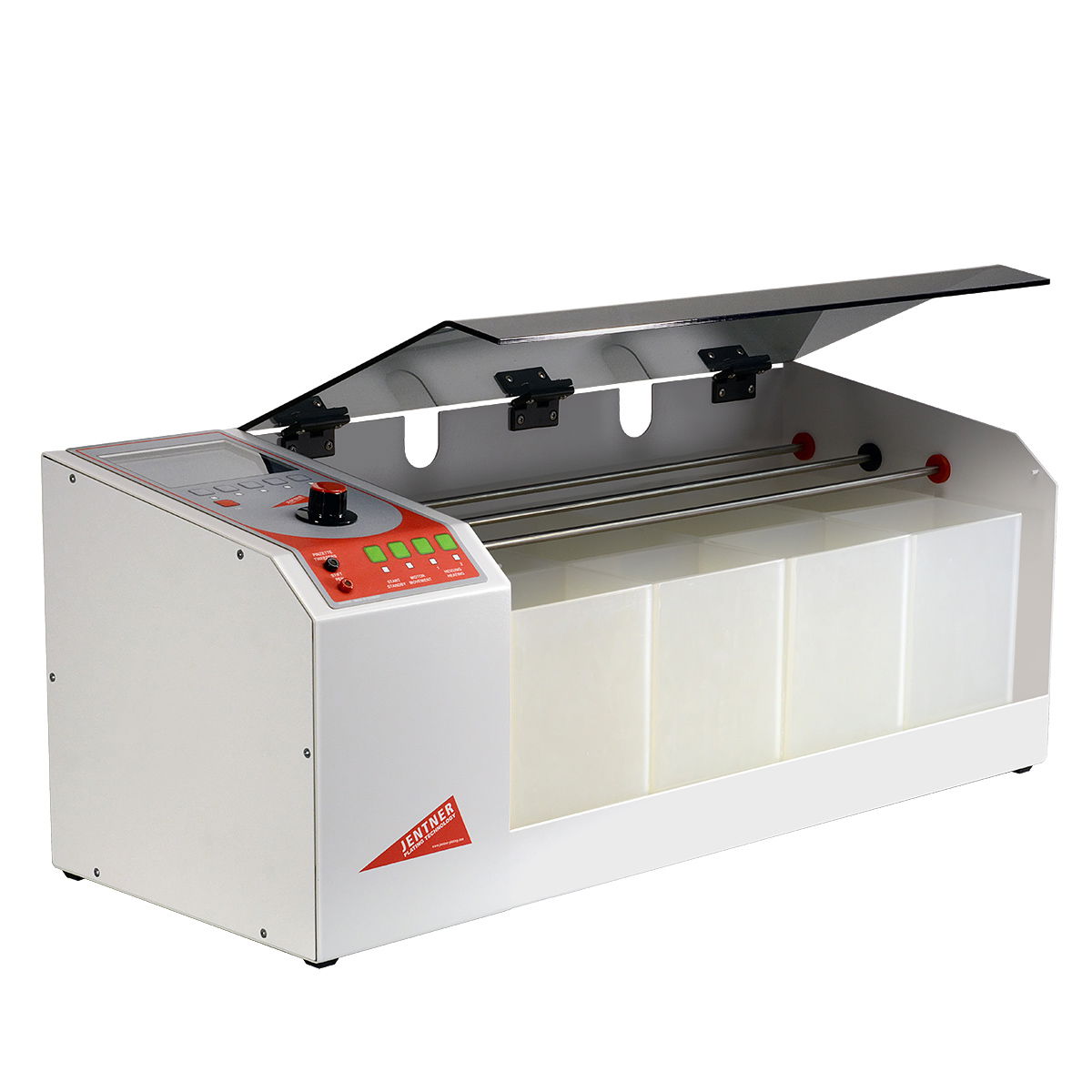

The Digital V is a programmable small-size electroplating unit which can be used for all current precious metal and non precious metal processes. The machine is characterized by it's user friendliness and the easy handling.The digital display of voltage, tension and temperature guarantees a careful and secure working. The integrated timer stops processes automatically and the ampere minute counter helps to calculate the precious metal consumption. In addition to pre-installed plating programs, new programs can be installed. The machine menu is available in several european languages. Digital V has an integrated goods movement and a pen plating connection.Technical data:Dimensions (WxDxH): 820x350x260Weight: 30 kgBath volume: 4x5 l, 4x2 lBath dimensions: 190x150x220 mmRectifier: 15V/ 15ASupply voltage: 230V/ 50Hz, 120V/ 60HzOptional equipment: 2x connectable heater (2x 315W)

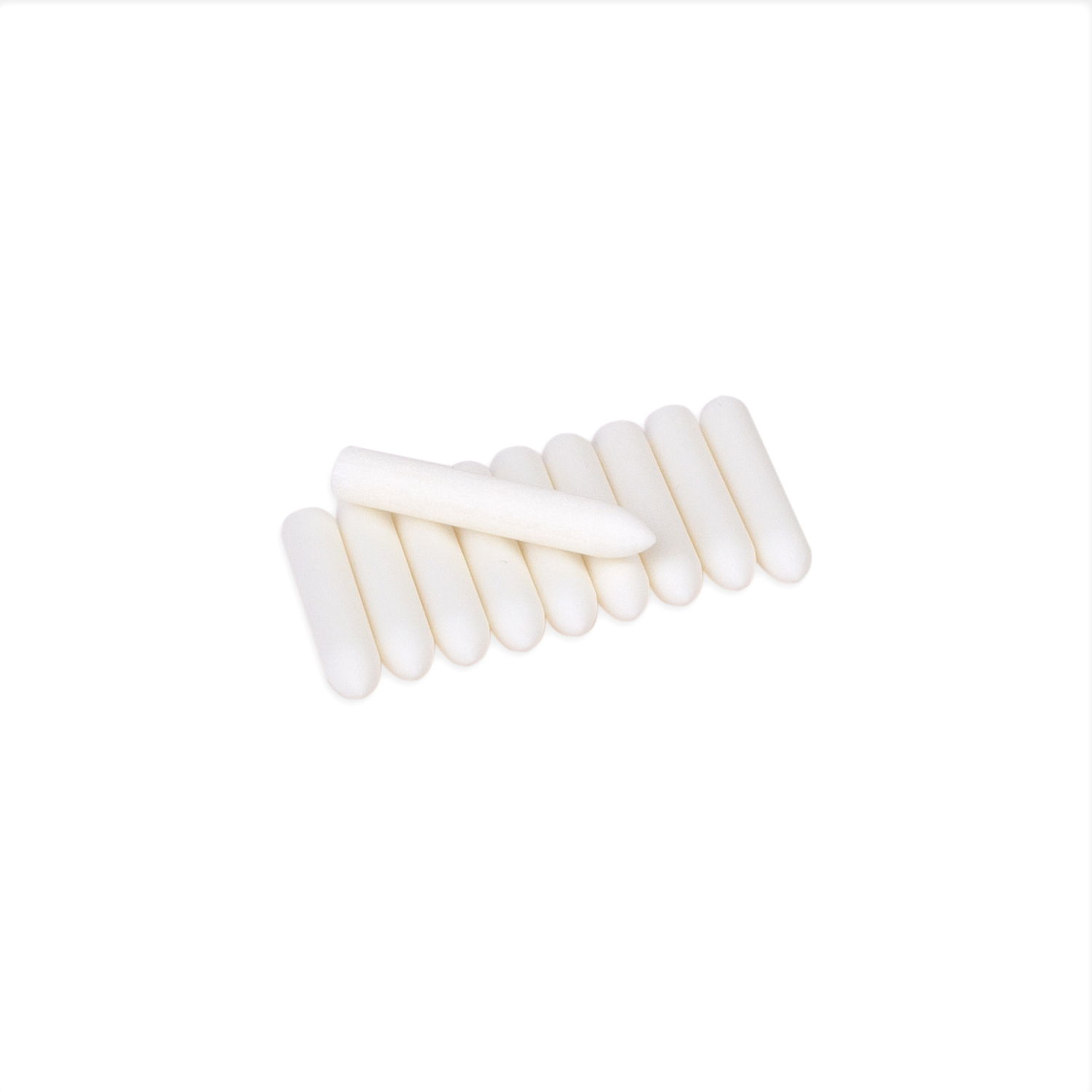

Felt tips 3,5x25mm, white round to plate e.g. rhodium gold or silver with the pen. Delivery unit: 10 pc.

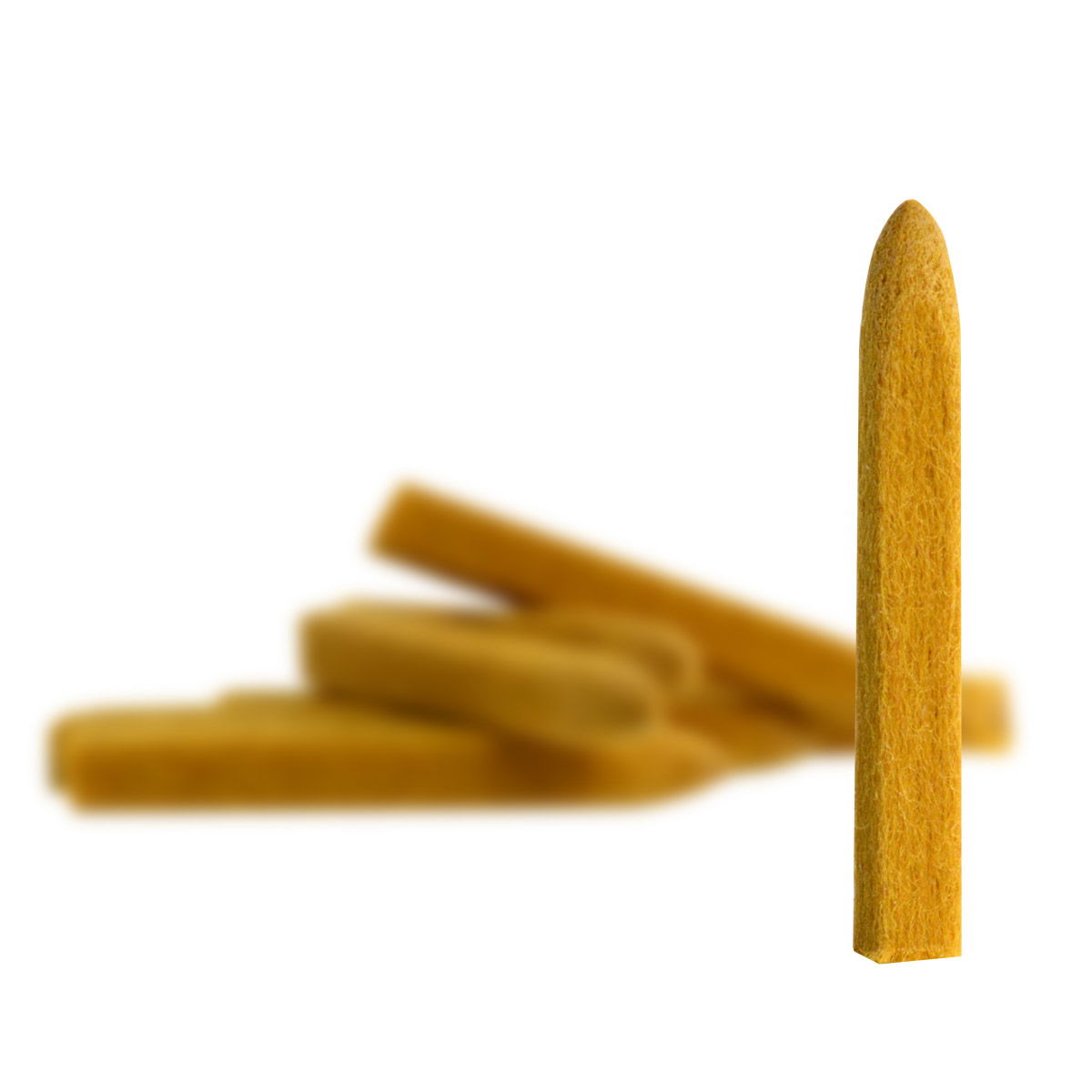

Felt tips for pen plating, brown to plate e.g rhodium, gold or silver with the pen. Delivery unit:10 pc.25 pc.100 pc.

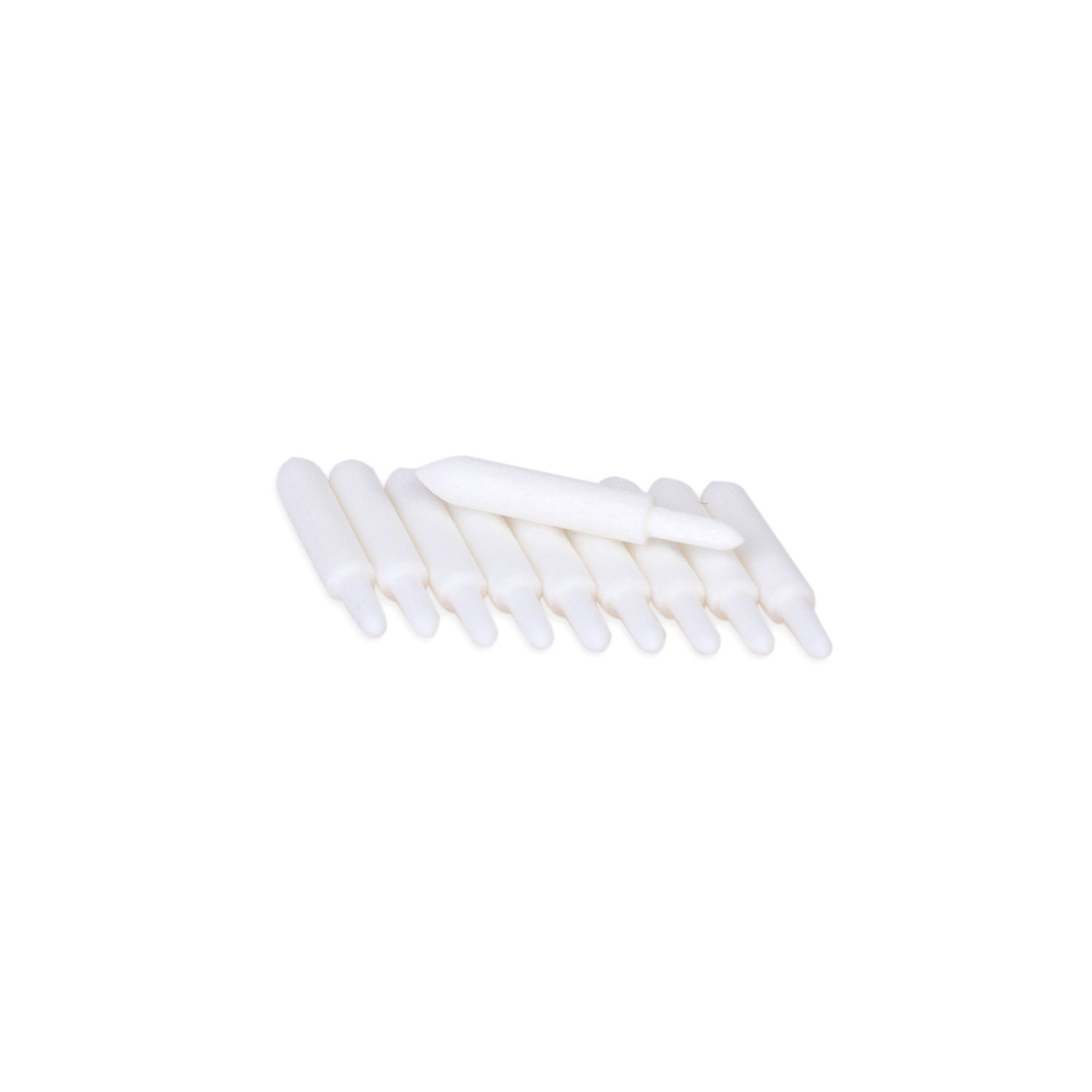

The white felts with extra-thin tips are available in practical packs of 10 and are perfect for partial coating with a pen plating machine.

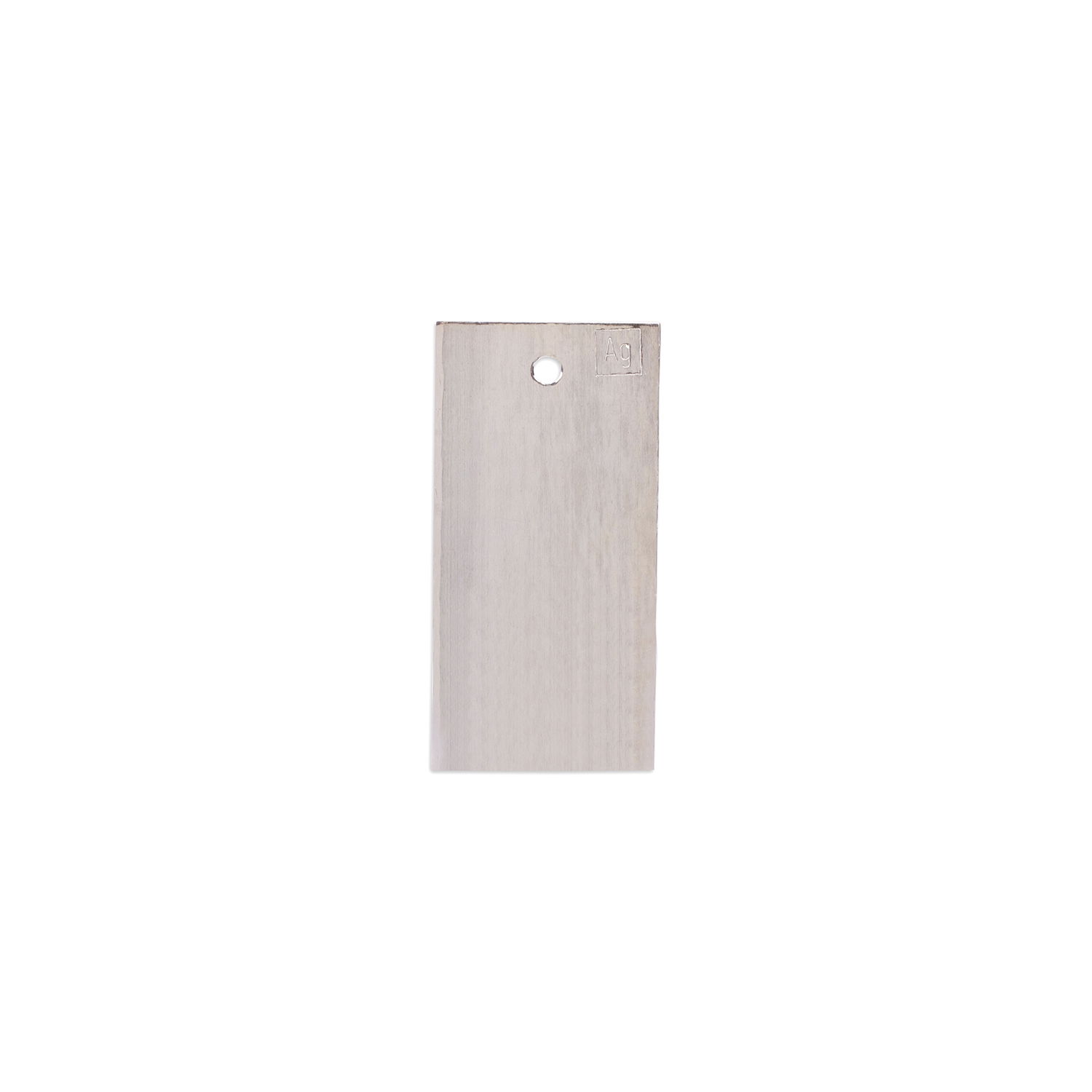

Suitable fine-silver anode 100x50x2 mm for Comfort II, Digital II Version 2.0 or 1,5 liter tanks. These anodes are suitable for silver baths. Please note that the fixation is not included in the delivery. They have to be ordered separately.

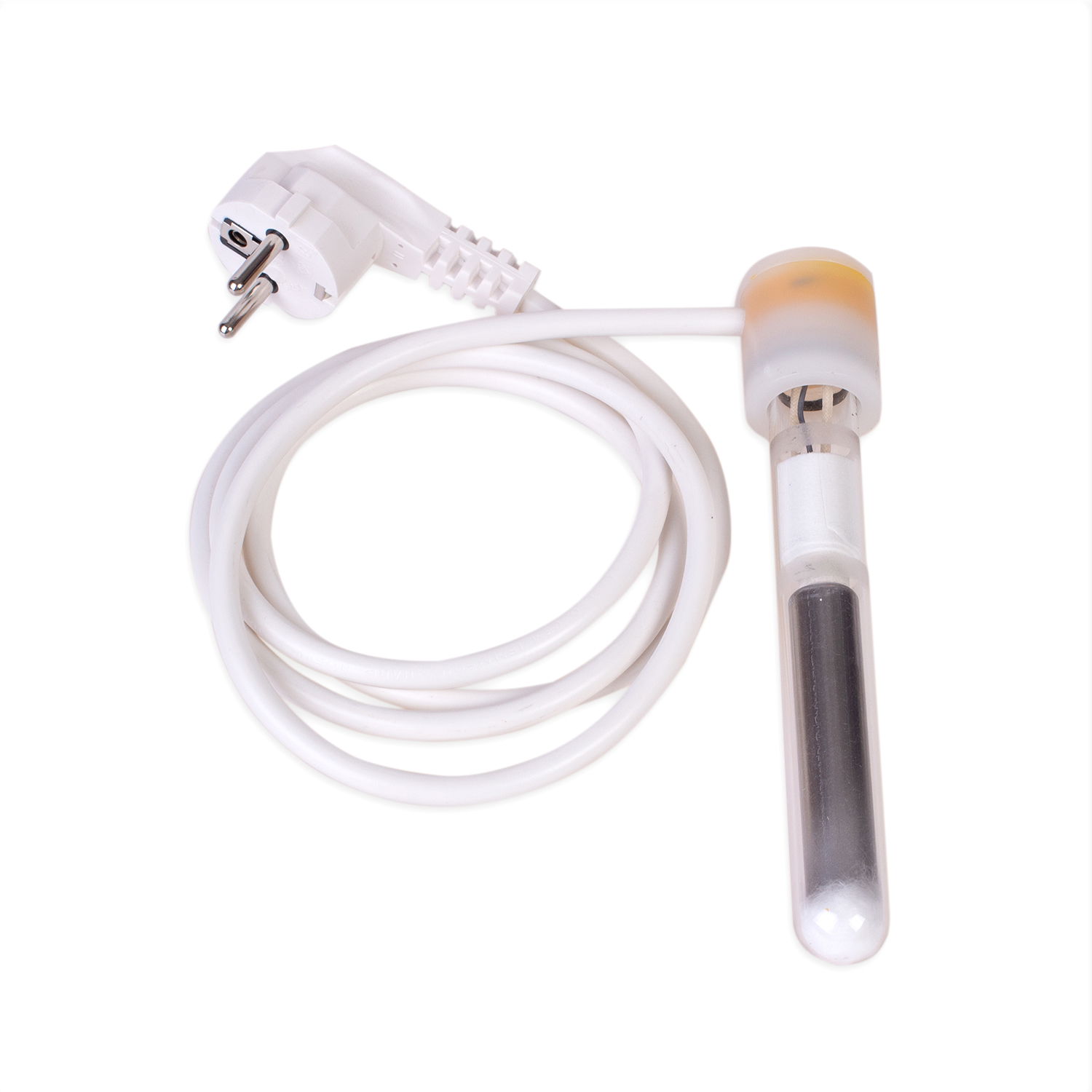

Stick immersion silica heater 180 watt. Depth of immersion 70mm, Ø 20mm. Suitable for Comfort II.Please note that the fixation is not included in the delivery. They have to be ordered separately.

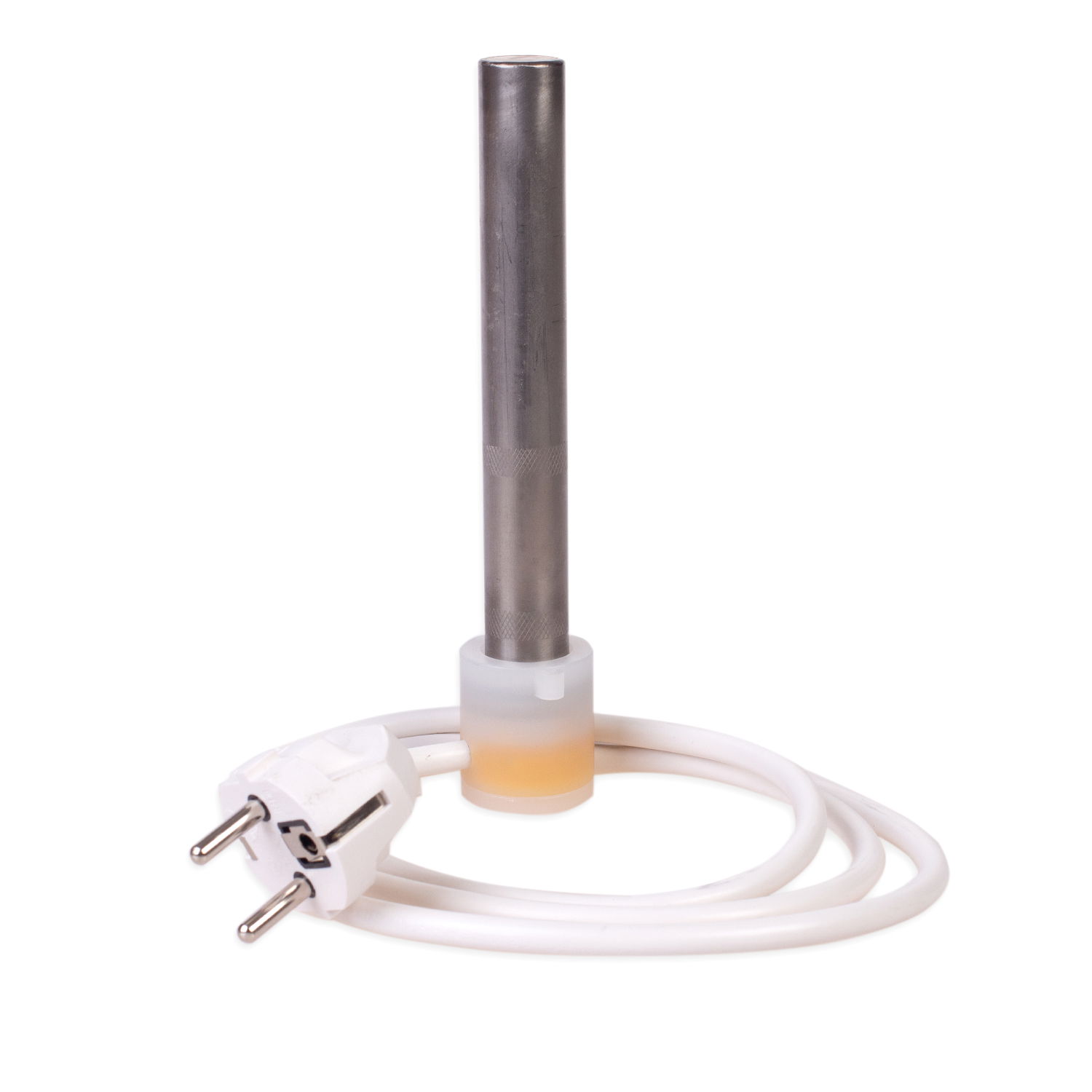

Immersion titan heater, 200 Watt/230V is suitable for heating e.g. ruthenium and nickel baths for Digital II Version 2.0 and Comfort II.Please note that the fixation is not included in the delivery. They have to be ordered separately.Dimensions:Length 150 mm.Depth of immersion 140 mm, Ø 20 mm.

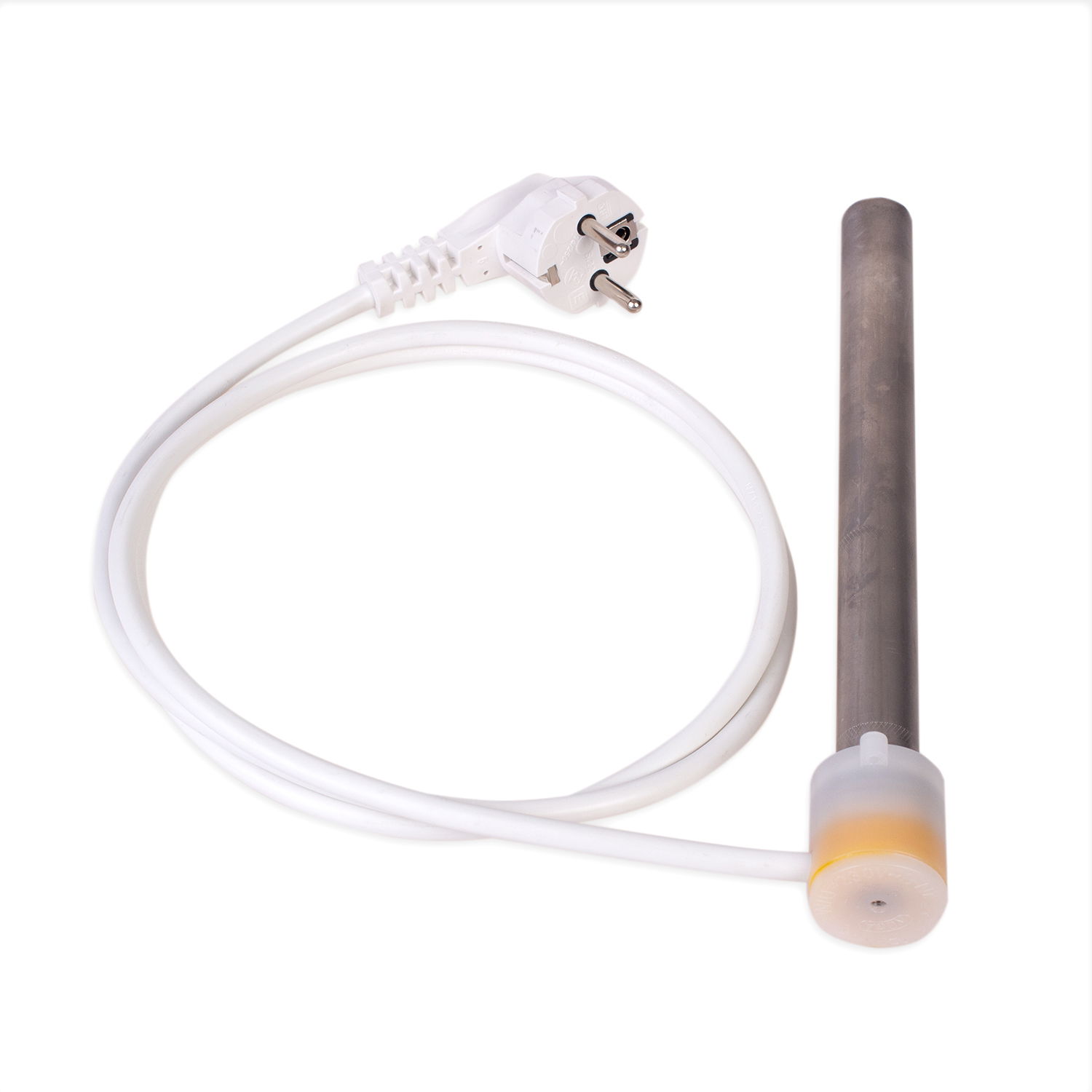

The 315 Watt/230V titanium immersion heater is suitable for heating e.g. rhodium, ruthenium and nickel baths. Suitable for the 5 liter tubs of our Digital V small electroplating units.Please note that the immersion heater holders must be purchased separately.Dimensions:Length 150 mm.Installation depth min. 200 mm, Ø 20 mm.

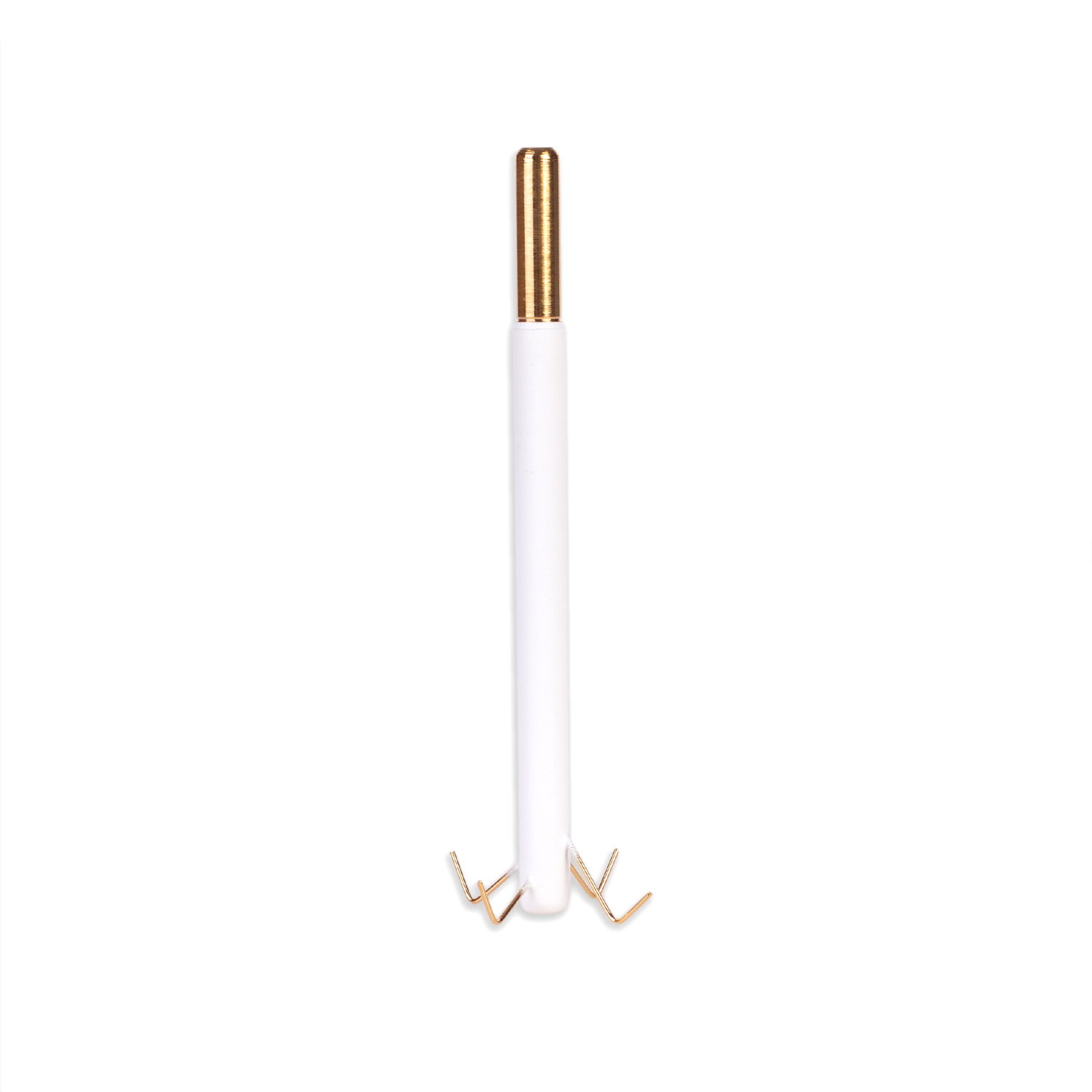

Jig with 4 hooks is a goods holder 130mm, for Rhodium Machine RMGo!

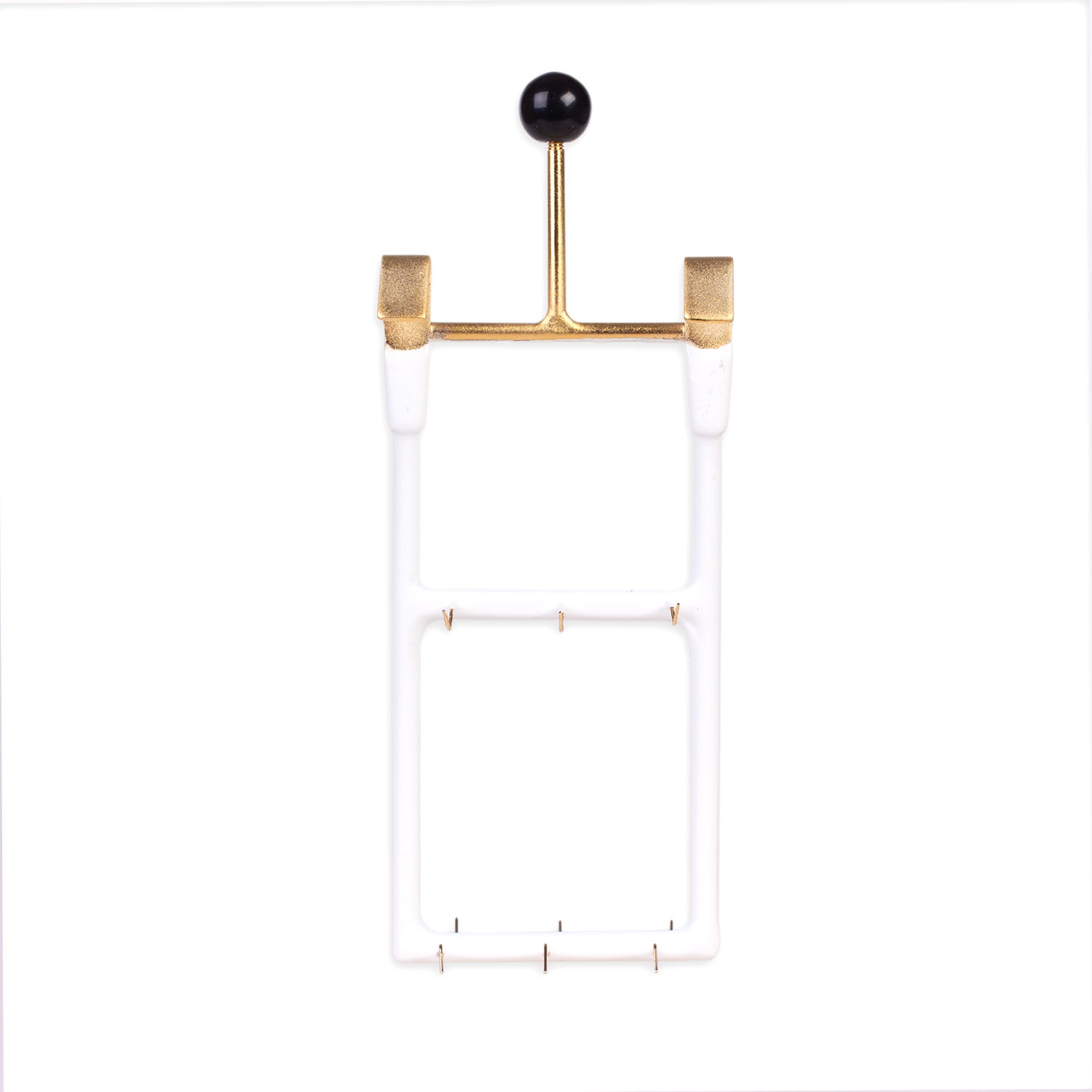

Jig with 12 hooks for chains 150x70mm, which is perfectly suitable for our small size electroplating unit Comfort II, Digital II Version 2.0 or 1-3 liter tanks.

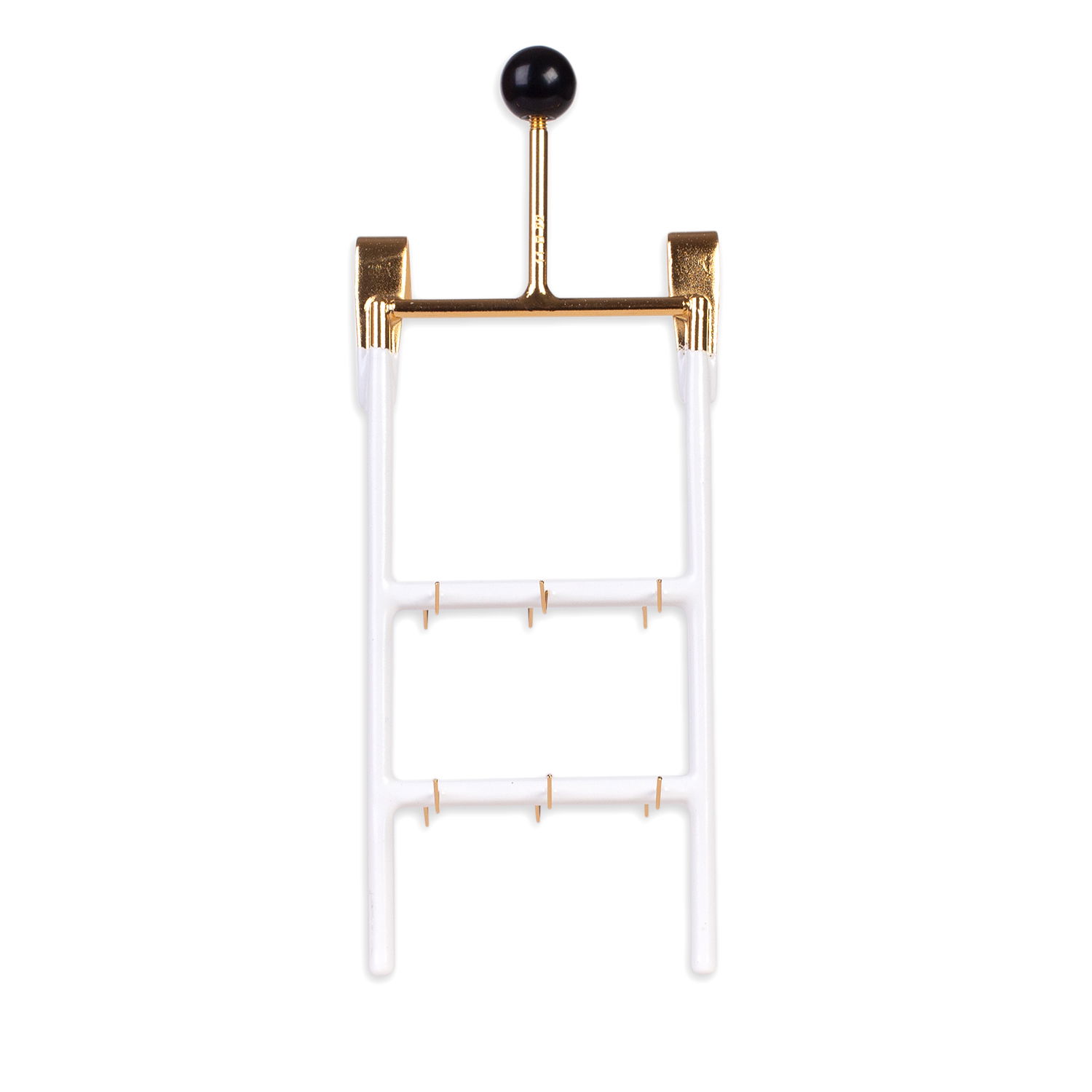

Jig with 12 hooks for rings 150x70 mm, which is perfectly suitable for our small size electroplating unit Comfort II, Digital II Version 2.0 or 1-3 liter tanks.

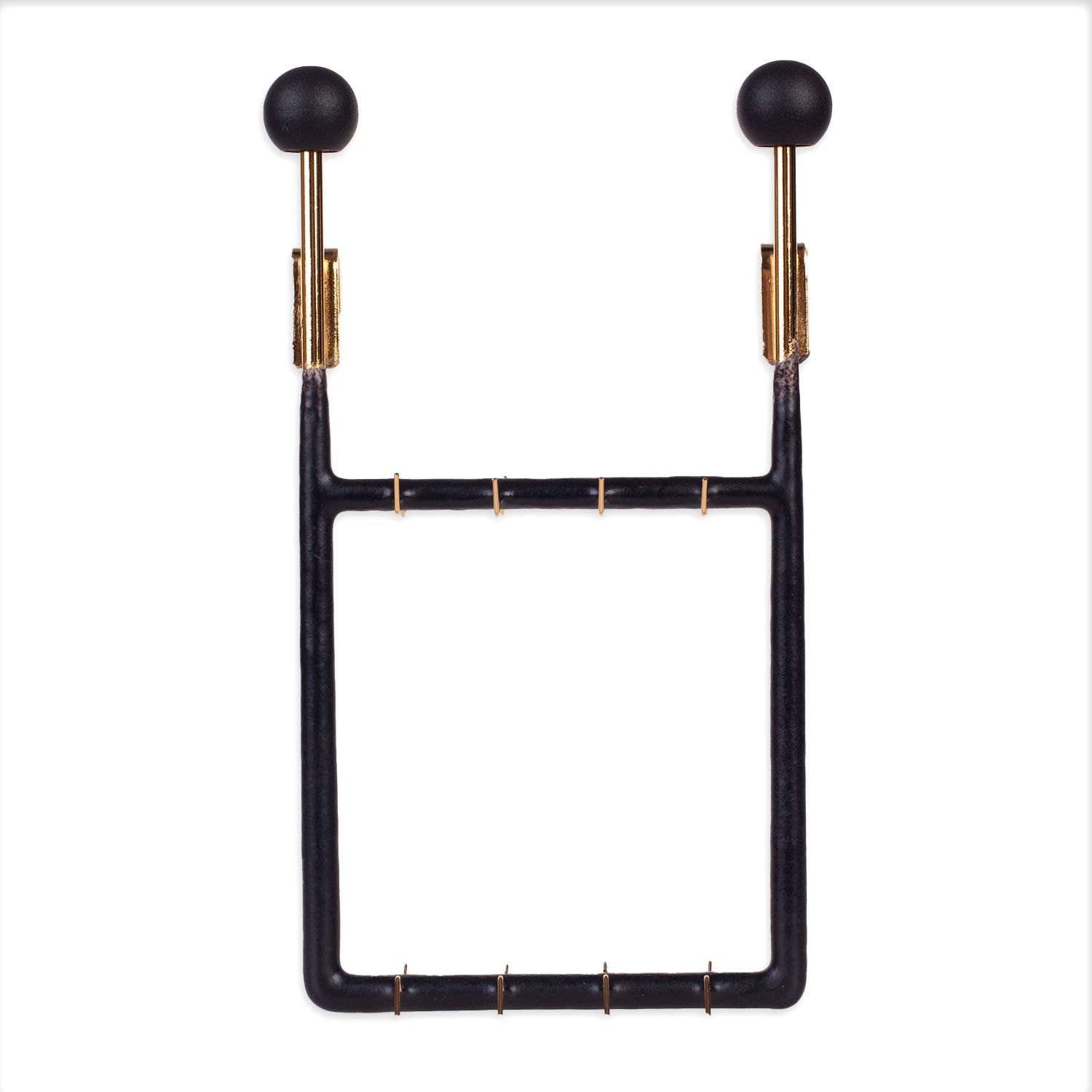

Jig with 16 hooks for chains 160x100 mm, which is perfectly suitable for Digital V and 5 liter tanks.
Jig with 16 hooks for chains 200x100 mm, which is perfectly suitable for Digital V.

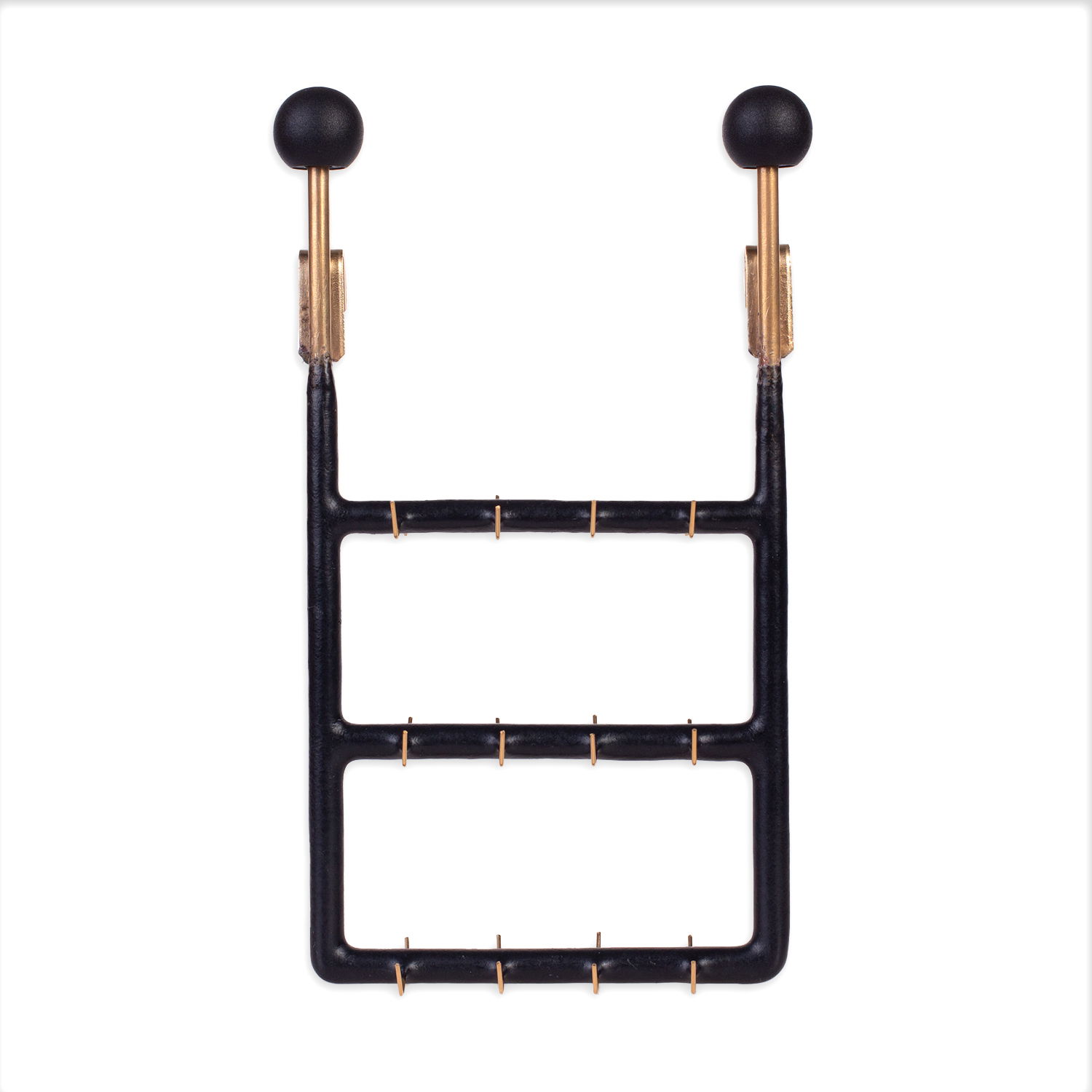

Jig with 24 hooks for rings 160x100mm, which is perfectly suitable for Digital V.

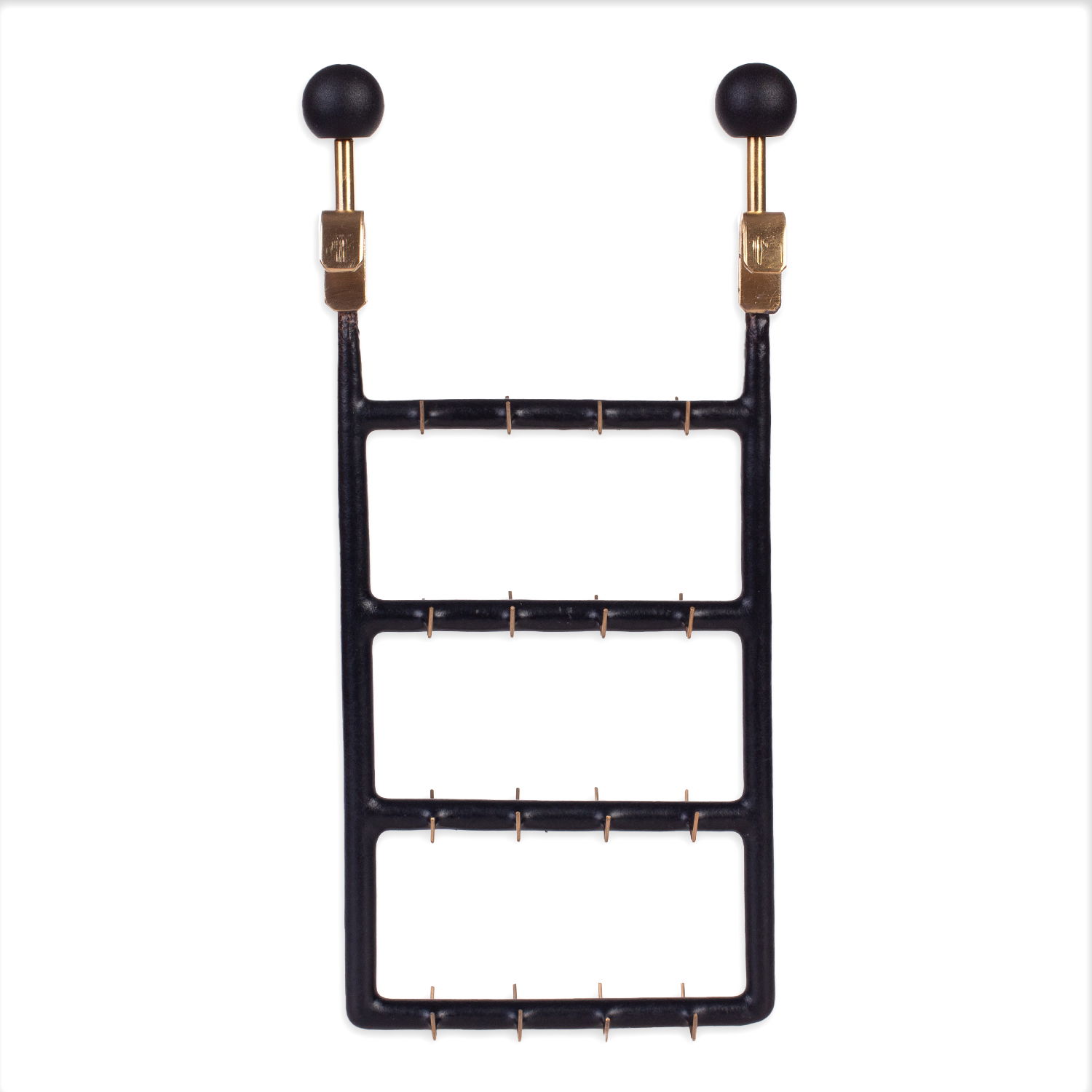

Jig with 32 hooks for rings 200x100 mm, which is perfectly suitable for Digital V.
Electroplating equipment from Jentner
Simple realisation of electroplating processes
