Perfect temperature control with
immersion heaters for electroplating
Not all baths work at room temperature, which is why they need to be heated. This requires an immersion heater. Whether you use this in a digital or analogue small electroplating system is irrelevant. The only important thing is that you always have the temperature under control.

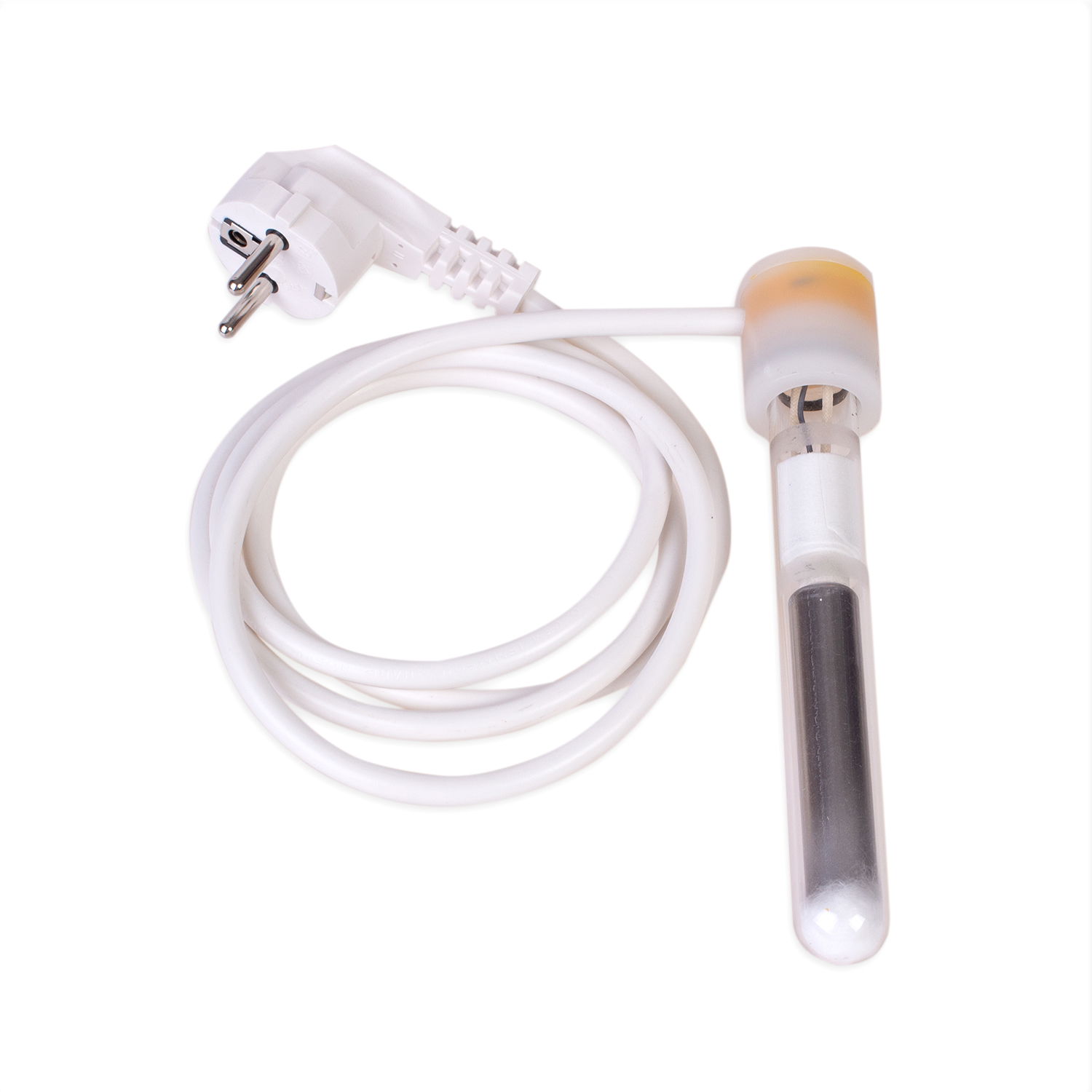

Stick immersion silica heater 180 watt. Depth of immersion 70mm, Ø 20mm. Suitable for Comfort II.Please note that the fixation is not included in the delivery. They have to be ordered separately.

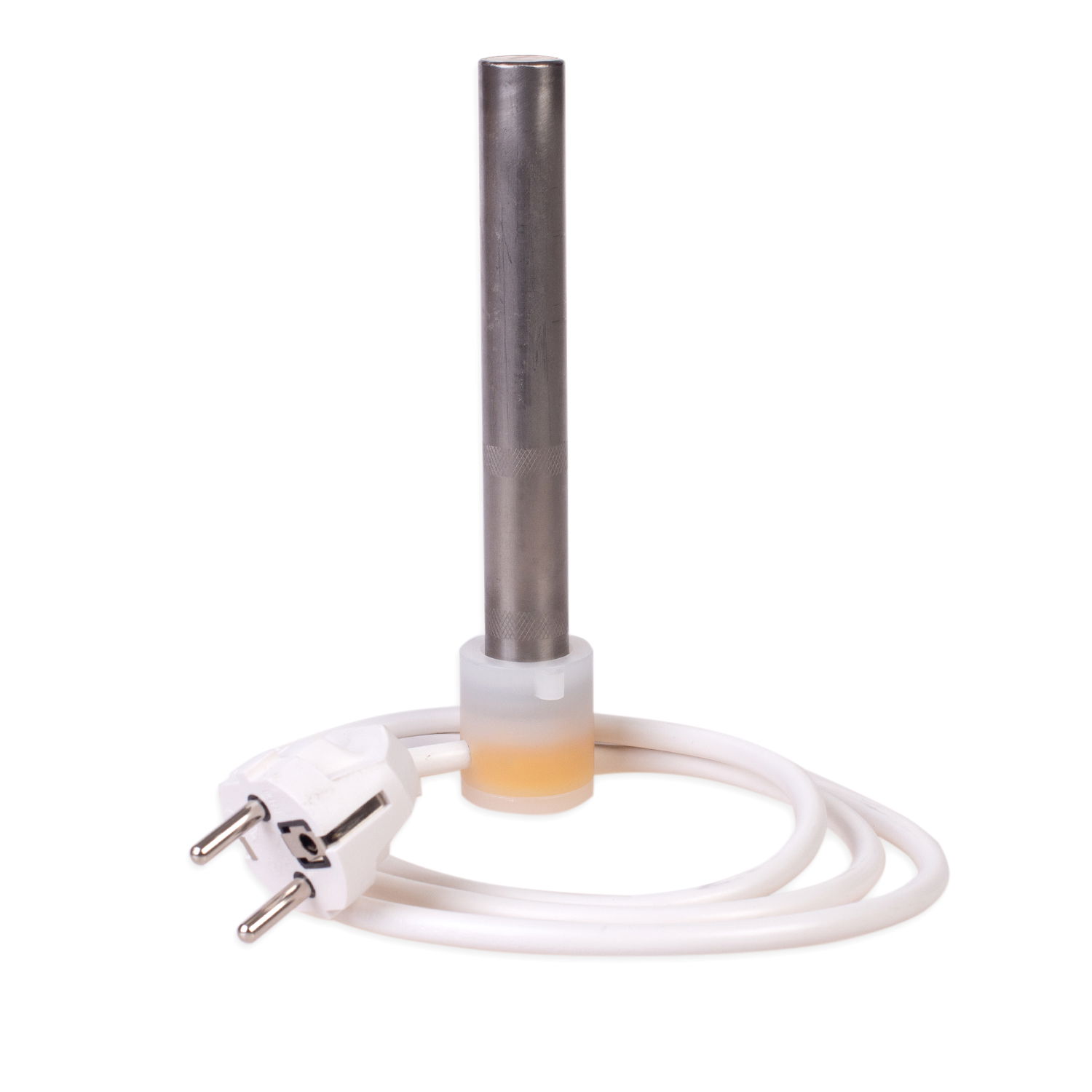

Immersion titan heater, 200 Watt/230V is suitable for heating e.g. ruthenium and nickel baths for Digital II Version 2.0 and Comfort II.Please note that the fixation is not included in the delivery. They have to be ordered separately.Dimensions:Length 150 mm.Depth of immersion 140 mm, Ø 20 mm.

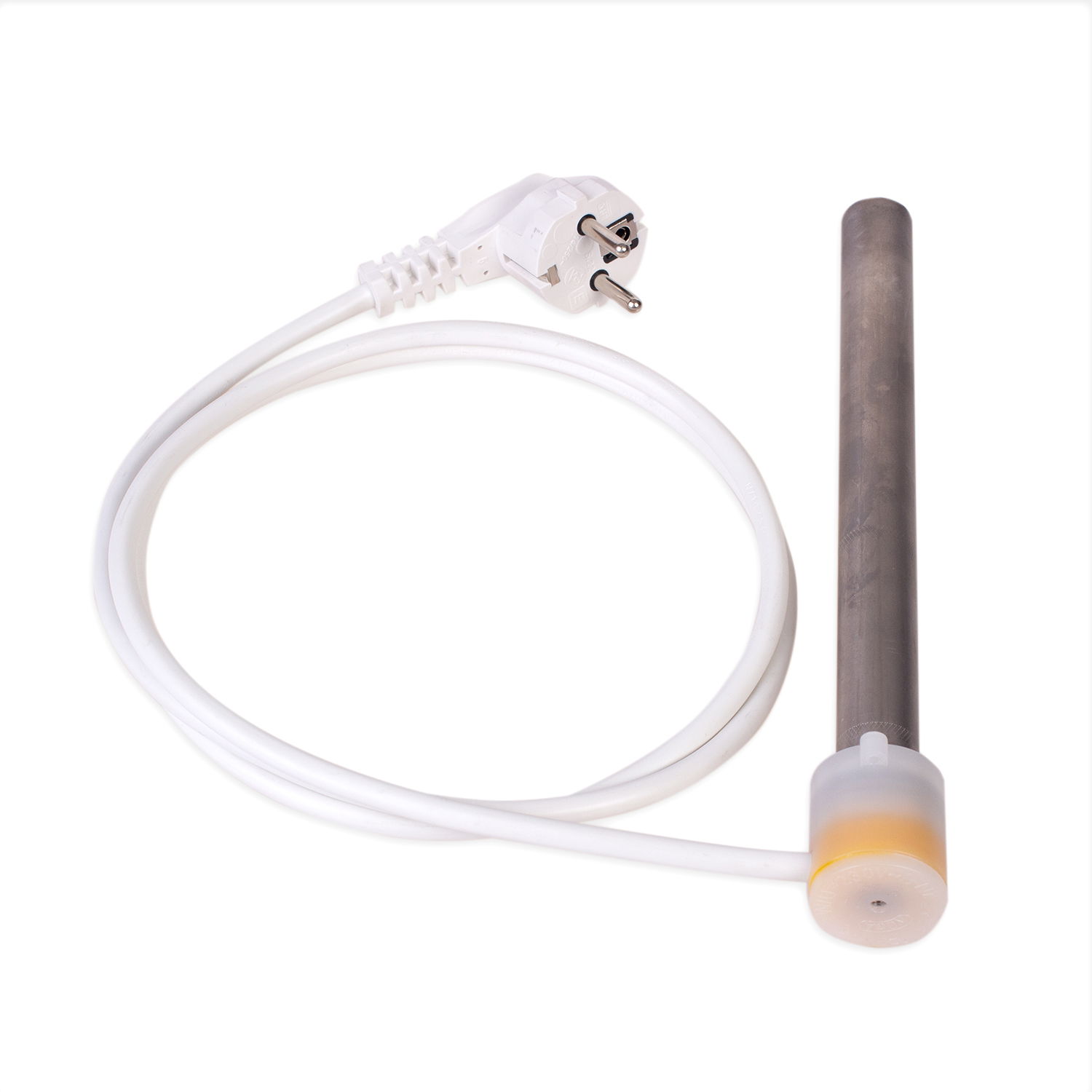

The 315 Watt/230V titanium immersion heater is suitable for heating e.g. rhodium, ruthenium and nickel baths. Suitable for the 5 liter tubs of our Digital V small electroplating units.Please note that the immersion heater holders must be purchased separately.Dimensions:Length 150 mm.Installation depth min. 200 mm, Ø 20 mm.

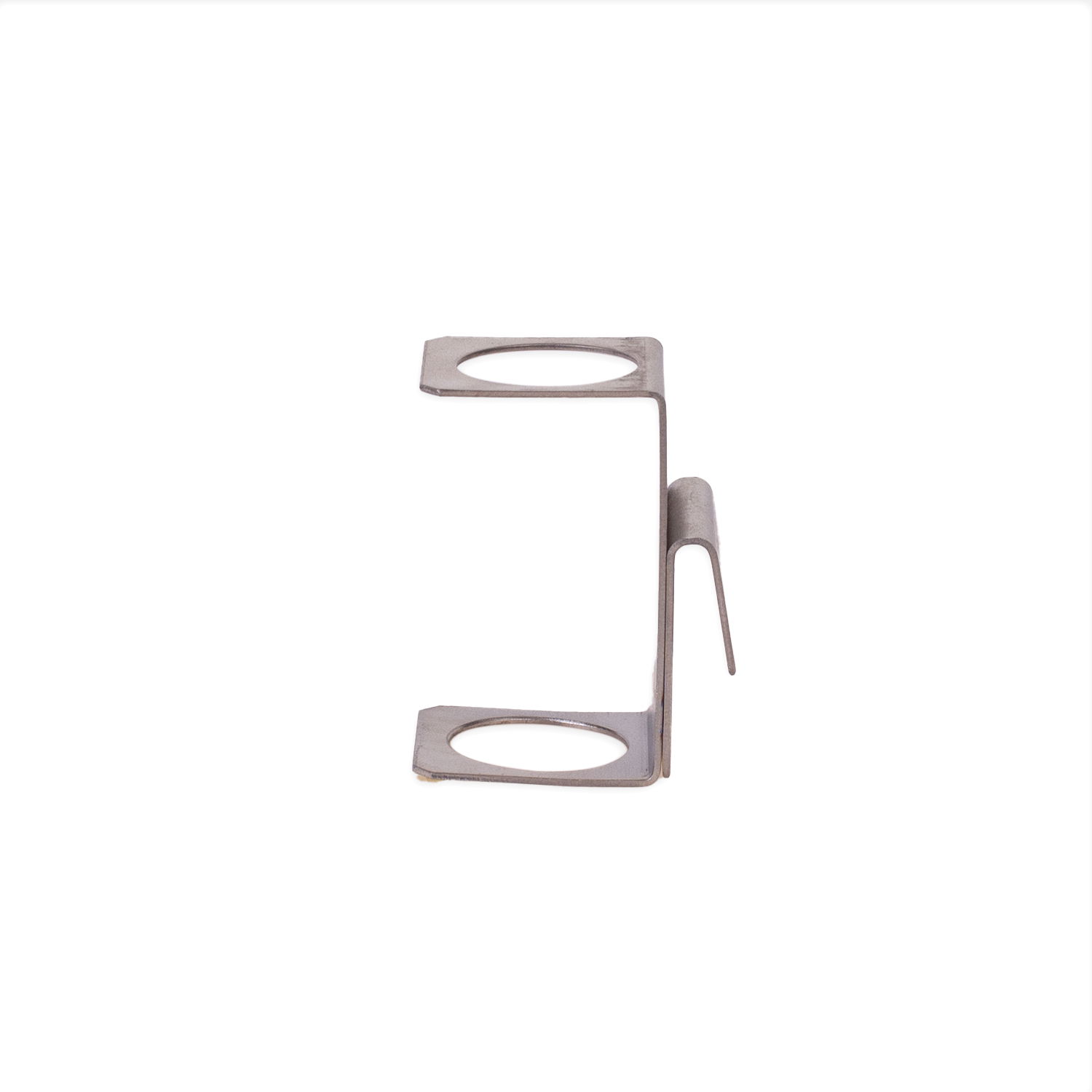

Titanium fixation for heater 200W/230V to fixate especially stick immersion heaters. It is suitable for Comfort II and Digital II Version 2.0.

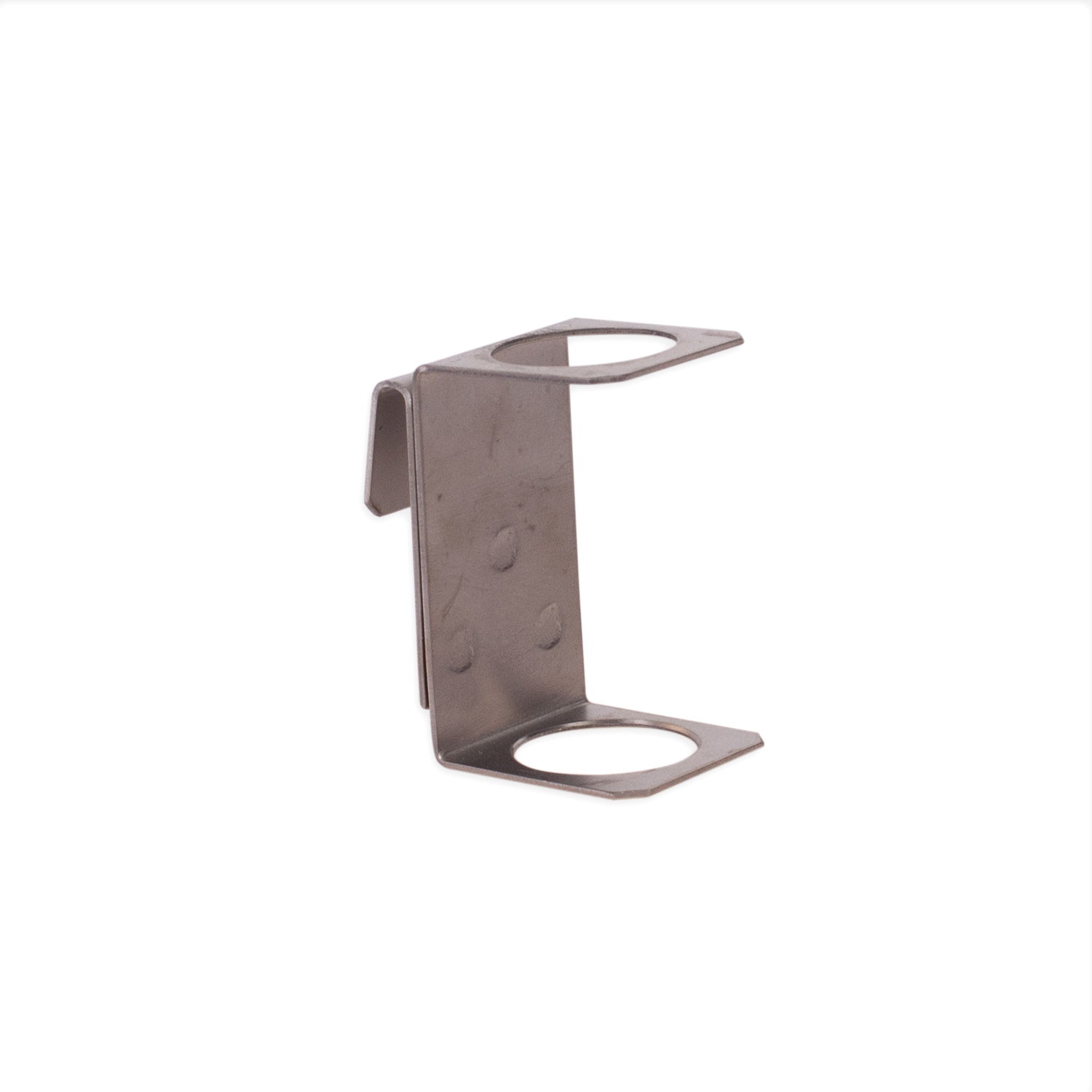

The titanium holder is for mounting the immersion heater 315 W/230V. V. It is suitable for the Digital V.

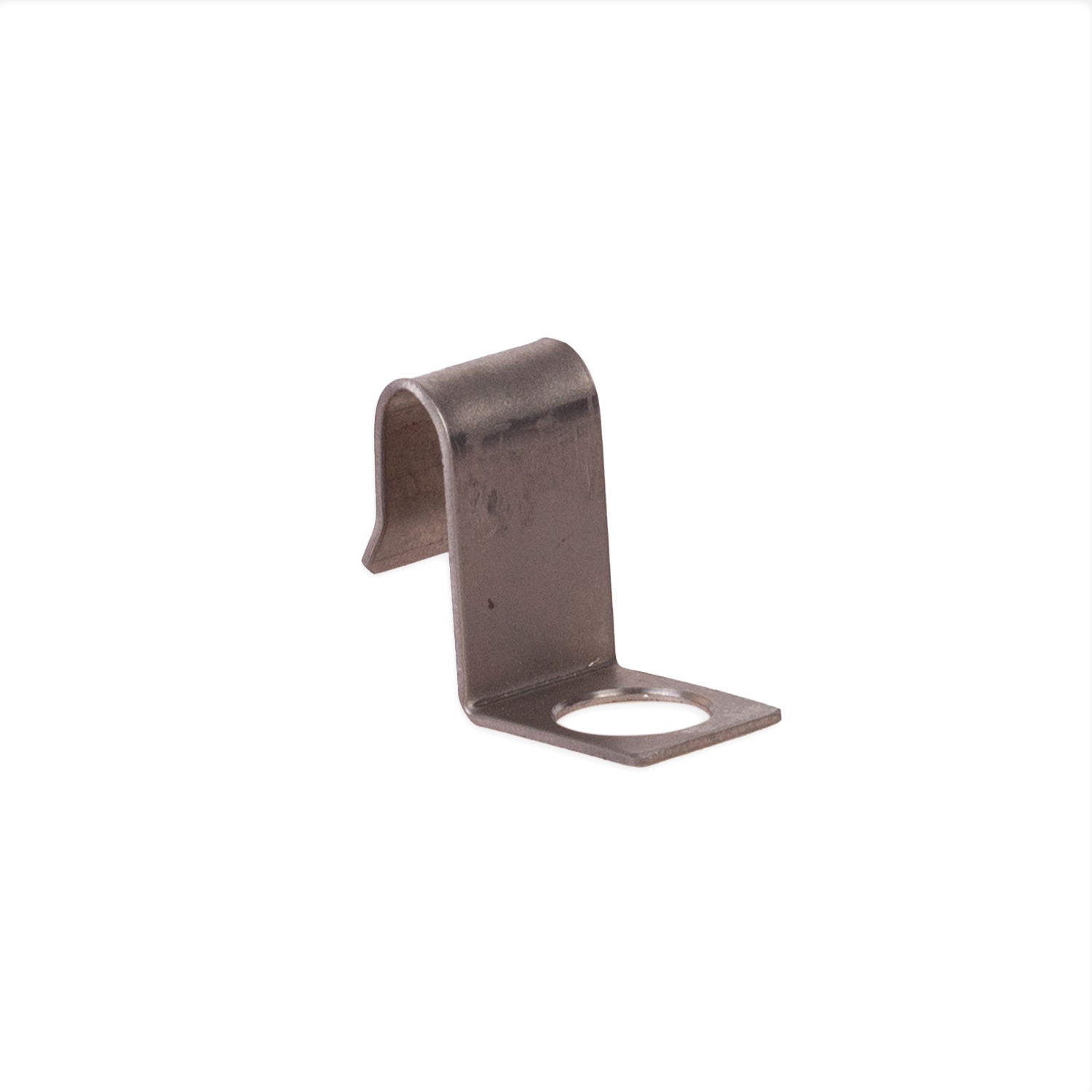

Matching titanium holder for attaching the temperature sensor.
