For the highest quality:
Precious metal electrolytes for your electroplating shop

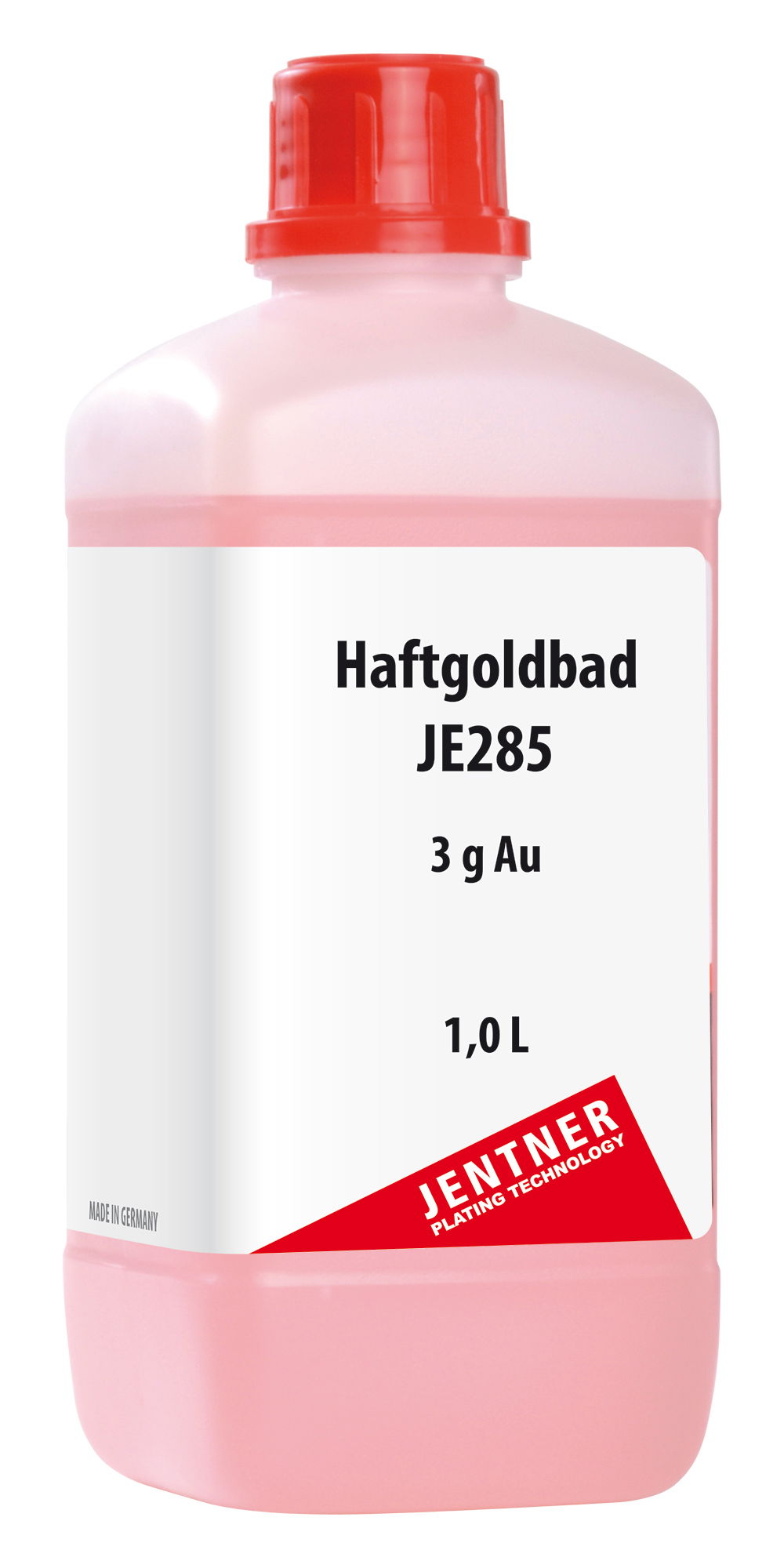

Adhesive gold bath JE285 - 3 g/L Au
The pre-gold bath JE285 is ideal to plate gold directly on stainless steels, molybdenum containing steel and nickel-base alloys which are hard to activate. Because of it's highly activative impact it can be used successfully for passive material which is difficult to plate. The gold electrolyte generally improves the adhesive properties between base material and galvanic surface.Operating data:Gold content: 3 g/LSulfuric acid content: 25 g/L (20-30) Deposition data:Hardness: approx. 165 HVLayer thickness: until 3 µmFineness of the gold coating: >99% AuOperating conditions:Voltage: 2 - 3 VBath temperature: 20 - 30 °CExposition time: 2 - 5 min. (max. 45 min.) Anode material: Mixed oxide (MOX) Goods movement: required Bath filtration: From 10 liter Anode/Cathode surface: 1 : 1Current density: 2 - 6 A/dm2

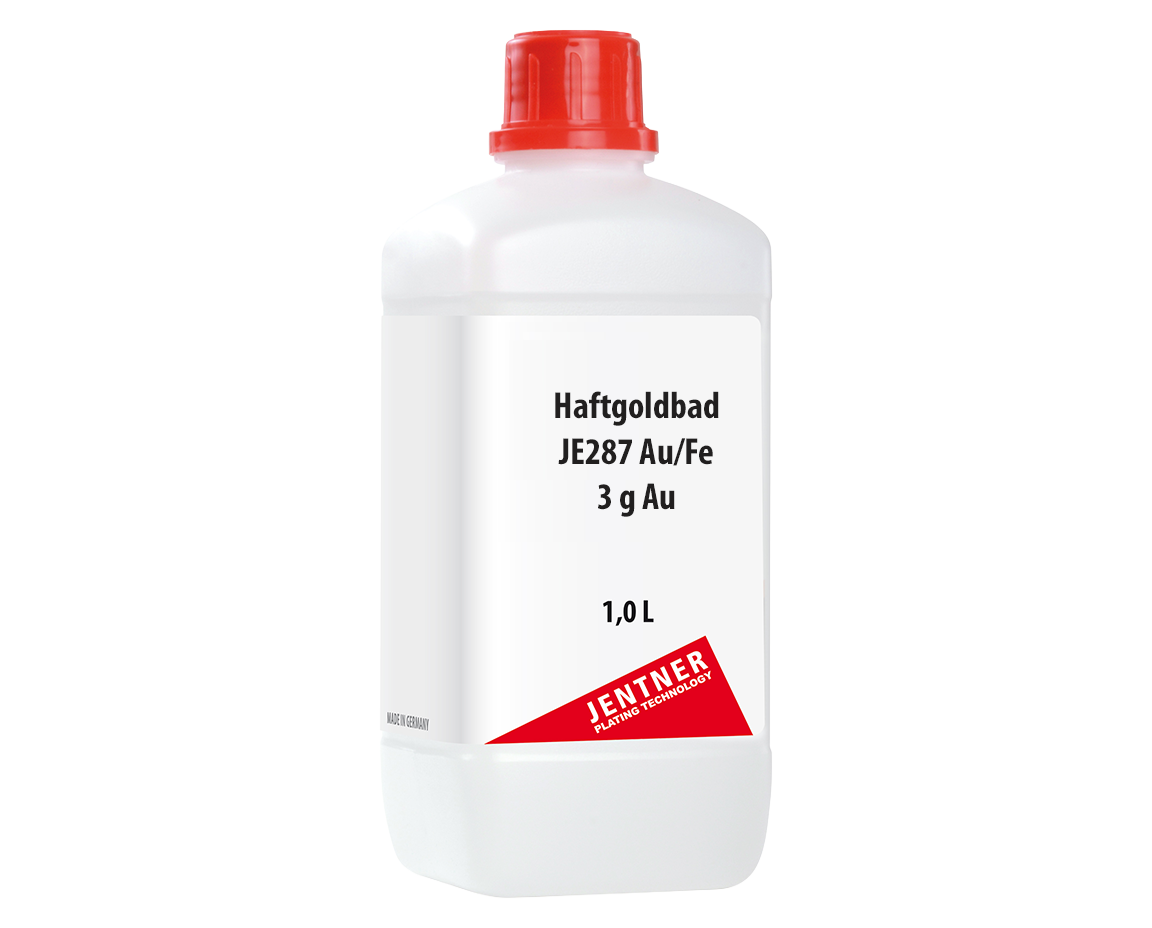

Adhesive gold bath JE287 Au/Fe - 3 g/L Au
The used ready-to-use adhesion gold bath JE287 is a strongly acidic gold electrolyte required for gilding precious steels. The coatings are crack-free, ductile, corrosion-protective, and low-porosity.The bath is excellent for direct gilding of chrome-nickel steel, molybdenum-containing steel, and difficult-to-activate nickel-based alloys. The coating consists of a gold/iron alloy. Layer thicknesses of up to 3 µm are possible. Cobalt and nickel-free! Operating data:Gold content: 3 g/LSulfuric acid content: 25 g/L (20 - 30) Deposition data:Hardness: approx. 165 HVLayer thickness: until 3 µmFineness of the gold coating: > 99% AuOperating conditions:Voltage: 2 volt (2 - 3,5)Bath temperature: 20 - 30 °CExposition time: 1 min. (max. 30 min. Anode material: Mixed oxide (MOX) Goods movement: required Anode/Cathode surface: 1:1Current density: 2 - 6 A/dm2 Bath filtration: From 10 liter Form of delivery:Ready for use 3 g/L Au

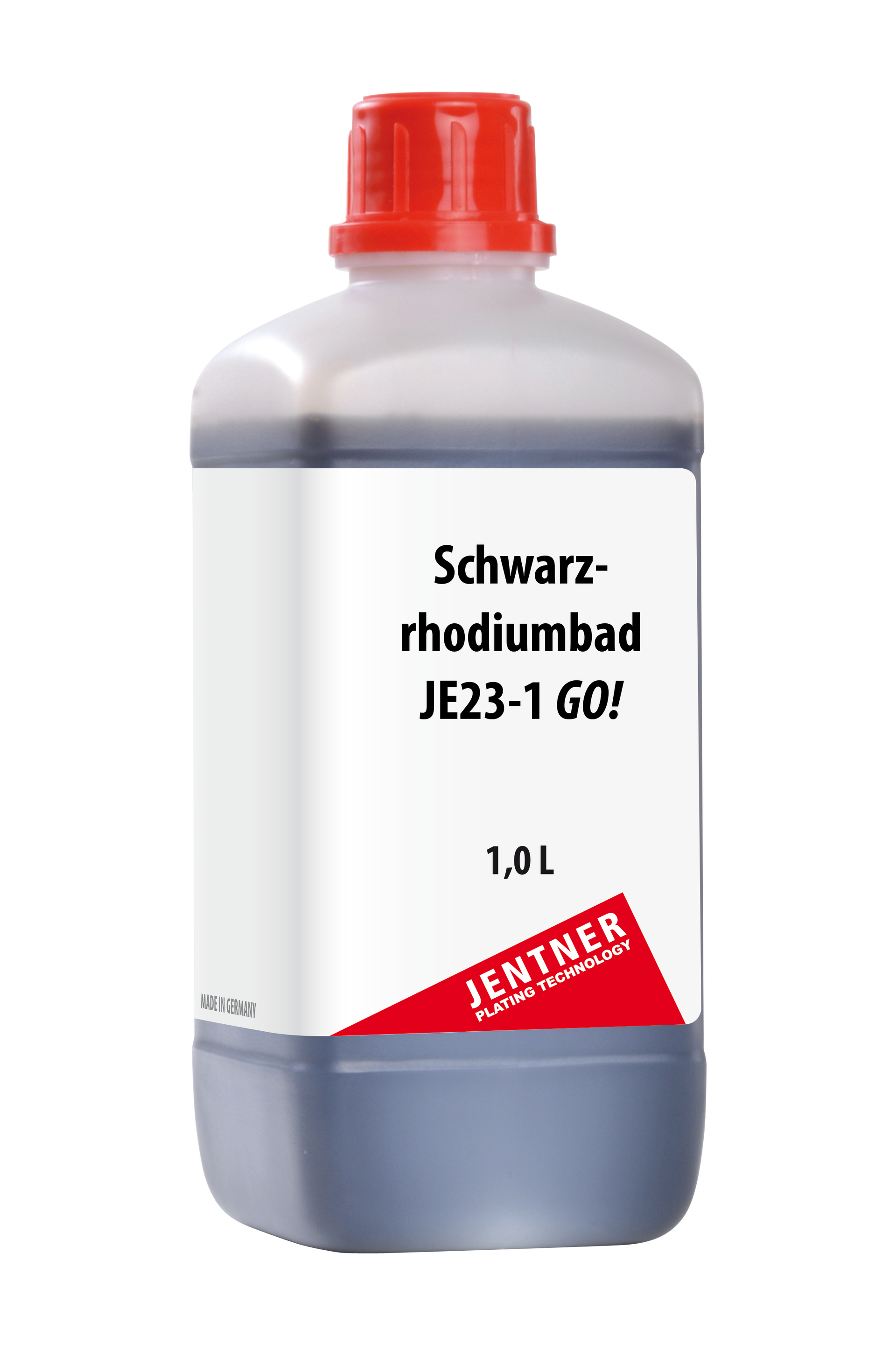

Black rhodium bath JE23-1 GO! - 2 g/L Rh
The black rhodium bath JE23-1 deposits dark anthracite-grey, particular decorative rhodium coatings. The layers are very abrasion resistant, colour consistent and uniform. The electrolyte is preferably used for decorative coatings in the jewellery and eyewear industry. JE23-1 is characterized by it's easy handling and usability. It works at room temperature so a time and energy intensive heating-up can be omitted. Coatings up to 0,5 µm can be deposited. Operating Data:Rhodium content: 2,0 g/L RhpH-Value: <1Density: 1,02 – 1,07 g/cm3 Working conditions:Voltage: 2 - 3 VoltBath temperature: 20 - 27°CExposition time: 2 min. (1 - 5 min.)Anodes: Platinized titanium, mixed-metal-oxideAnode/ Cathode: 1:1Current density: 1,0 - 1,5 A/dm2Agitation: required Deposition rate: 6 - 8mg/AminBath filtration: ab 10 LiterDeposition Data:Hardness: 300 - 370 HVLayer thickness: max. 0,5 μmLayer density: ca. 10,5 g/cm3Form of delivery:Ready for use

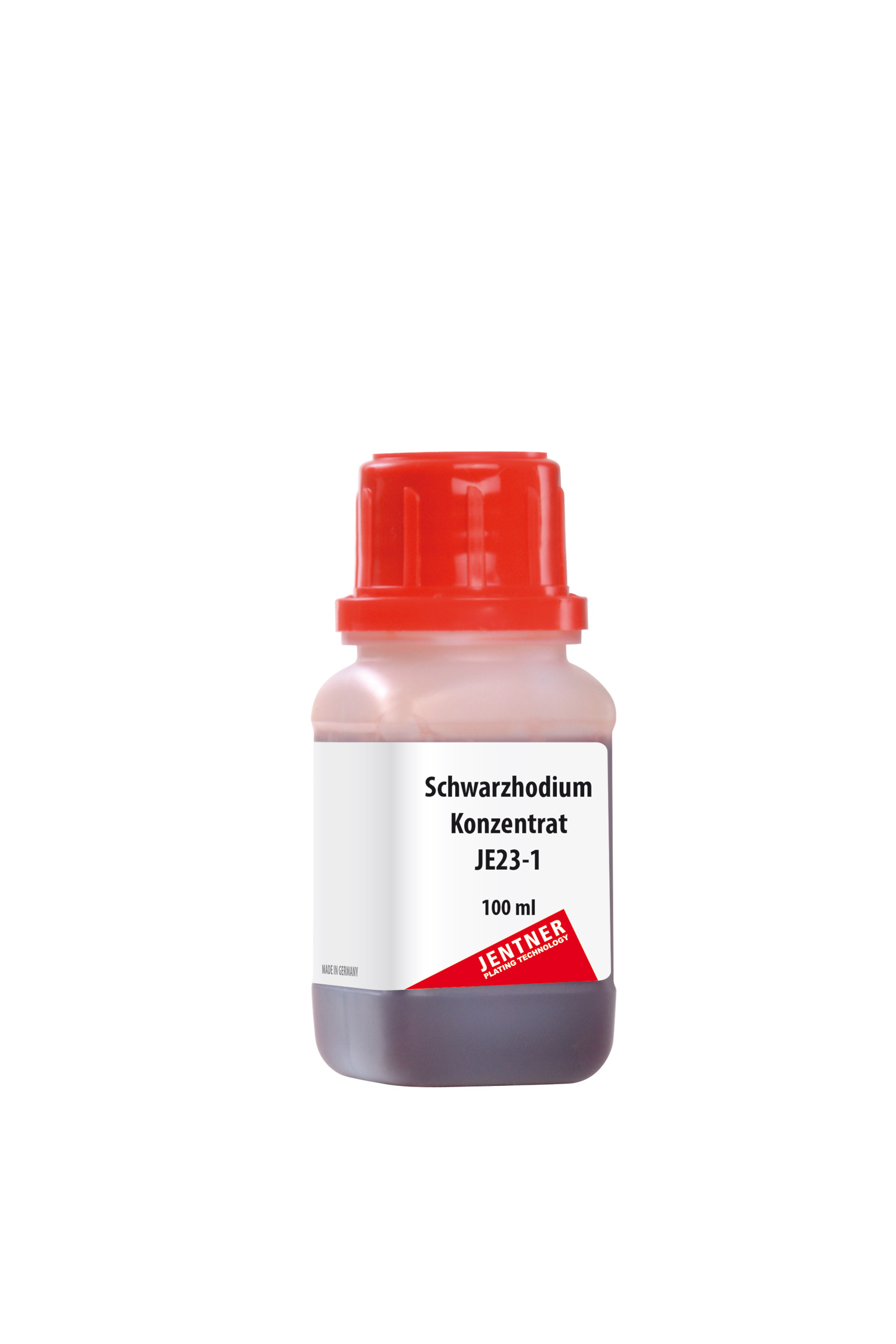

Black Rhodium Concentrate JE23-1 - 2g/100ml Rh
The black rhodium bath JE23-1 deposits dark anthracite-grey, particular decorative rhodium coatings. The layers are very abrasion resistant, colour consistent and uniform. The electrolyte is preferably used for decorative coatings in the jewellery and eyewear industry. JE23-1 is characterized by it's easy handling and usability. It works at room temperature so a time and energy intensive heating-up can be omitted. Coatings up to 0,5 µm can be deposited.Operating data:Rhodium content: 2,0 g/100ml RhpH-Value: <1Density: 1,02 - 1,07 g/cm3 Working conditions:Voltage: 2 - 3 VoltBath temperature: 20 - 27°CExposition time: 2 min. (1 - 5 min.)Anodes: Platinized titanium, mixed-metal-oxideAnode/ Cathode: 1:1Current density: 1,0 - 1,5 A/dm2Agitation: requiredDeposition rate: 6 - 8mg/AminBath filtration: ab 10 LiterDeposition data:Hardness: 300 - 370 HVLayer thickness: max. 0,5 μmLayer density: ca. 10,5 g/cm3Form of delivery:Concentrate form 2 g/100ml Rh for 1 litre bathConcentrated bath preparation:Mix 100 ml of the Rhodium JE88 concentrate with 900 ml distilled water.

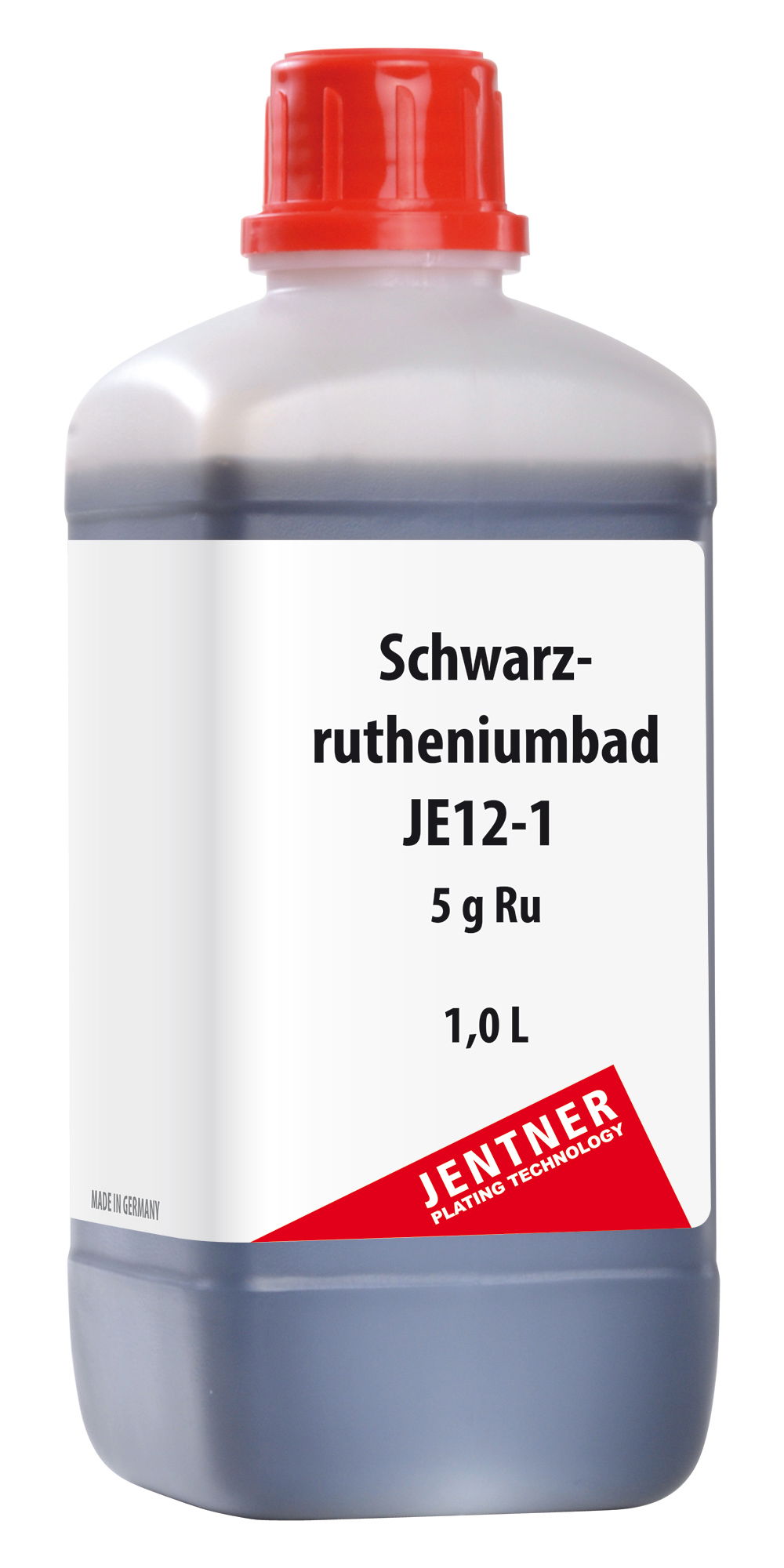

Black Ruthenium Bath JE12-1 - 5 g/L Ru
The black ruthenium bath JE12-1 deposits dark up to grey-black ruthenium coatings. The ruthenium electrolyte preserves the brightness and it can be obtained a high colour consistency. The layers have a good grip and impress through their decorative colour. Coatings up to max 0,2-0,5 µm can be deposited. When plating non-precious metals it is recommended to use a pre-gold layer or a pre-palladium layer.Operating data:Ruthenium content: 5.0 g/L RupH-value: 1.0 - 1.6Density: 1.036 g/cm3Operating conditions:Voltage: 2,2 - 3 VoltBath temperature: 65°C (60 -70°C)Exposition time: 2 min. (2 - 4 min.)Anodes: Platinized titanium, mixes metal oxideAgitation: requiredCurrency density: 0.5 - 3 A/dm2Deposit rate: 1 - 3 mg/AminDeposit speed: 0.02 µm/min at 1.5 A/dm2Bath filtration: from 10 Liter Deposition data:Hardness: approx. 800 HVLayer thickness: max. 0.5 µmLayer density: approx. 12 g/cm3 Form of delivery: Ready for use

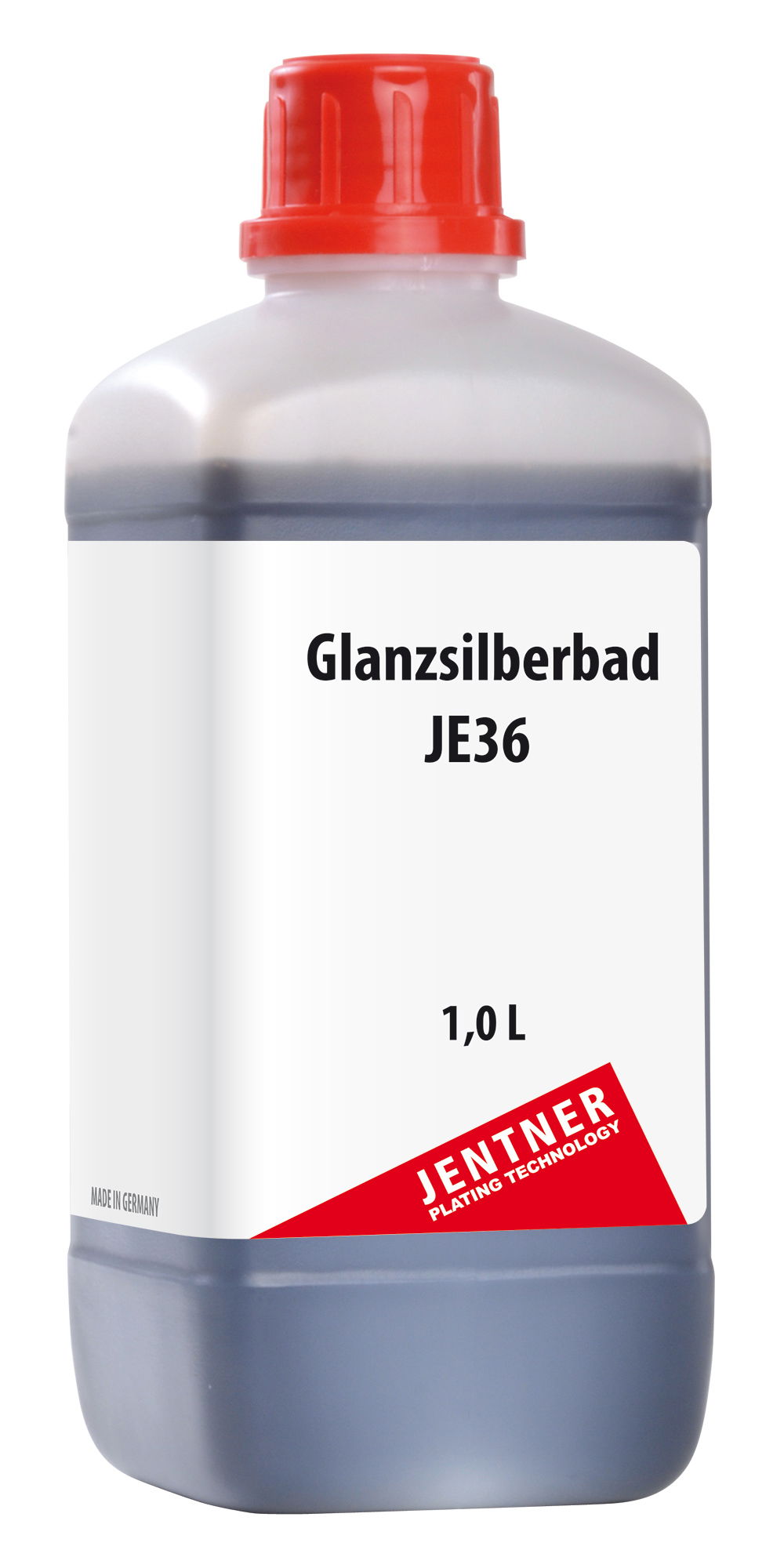

Bright Silver Bath JE36
The brightening silver bath JE 36 grants extremely white fine silver plating results and is ideal for silver plating in the field of decoration and technique. Operating data:Fine Silver Concentration: 36 g/L AgPotassium cyanide concentration: 150 g/L Operating conditions:Voltage: approx. 0.5 - 1.2 VoltBath temperature: 20 - 30°CExposure time: approx. 2 min.Anodes: Fine silver Anode/Cathode surface: 1:1Agitation: necessaryCurrent density: 0,1 - 3 A/dm²Exposure time: approx. 0,5 μm/min at 1A/dm²Deposition rate: 65 mg/Amin Bath filtration: from 10 litres Deposition data:Hardness: approx. 110 HVLayer density: approx. 10,4 g/cm3 Layer thickness: 99,5 - 99,9 % Ag Form of delivery:- Ready to use- Salt form from 100 liters (salt form + brightener solution) Please note that this article is a dangerous good according to the legal guidelines. For this reason we need a copy of your business registration.Therefore we kindly ask you to send us the business registration in advance.

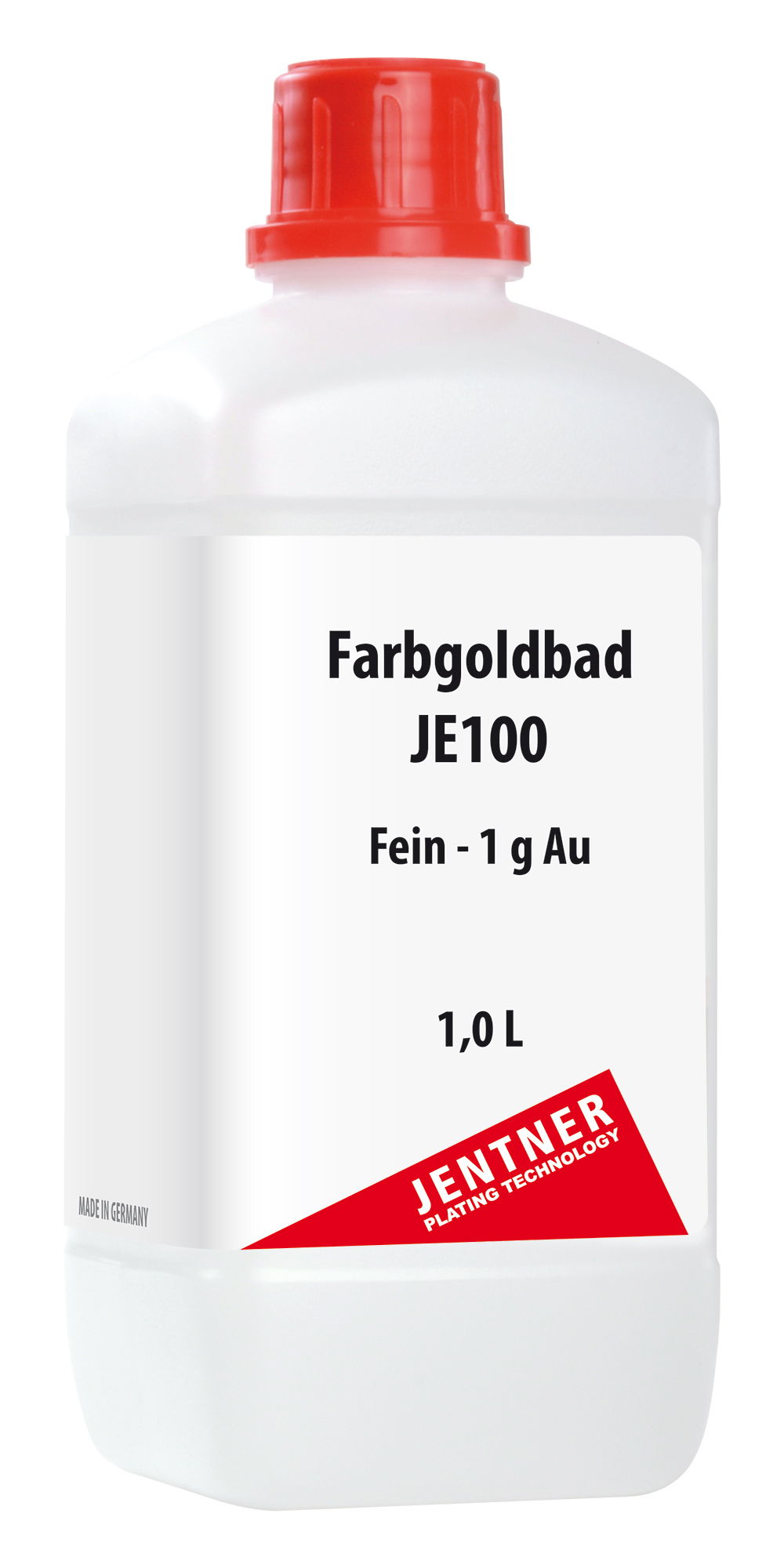

Colour Gold Bath JE100 - fine - 1 g/L Au
The color gold bath JE100 - fine deposits decorative gold layers in fine gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au

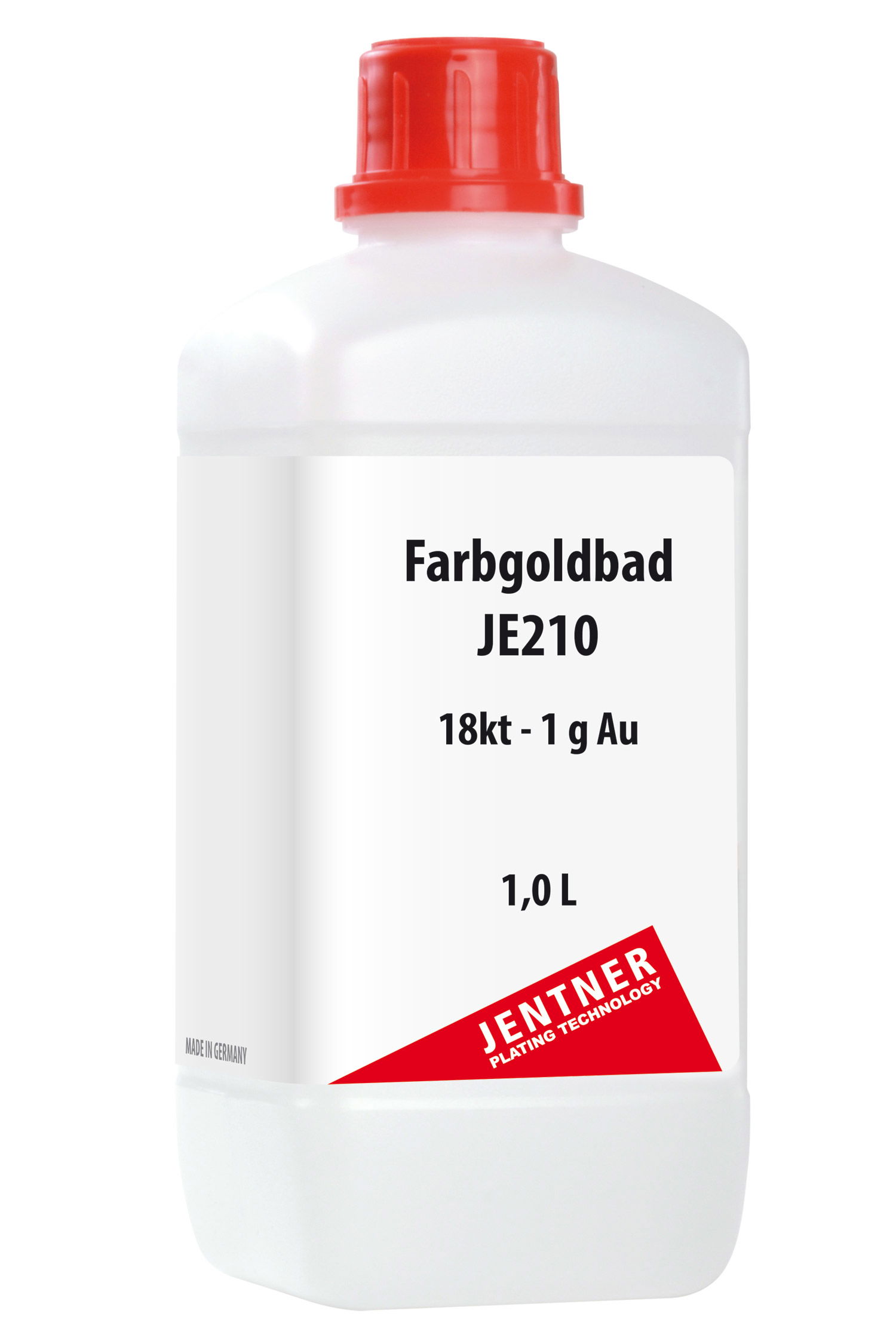

Color gold bath JE210- 18ct - 1 g/L Au
The color gold bath JE210 - 18ct deposits decorative gold layers in 18ct color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au

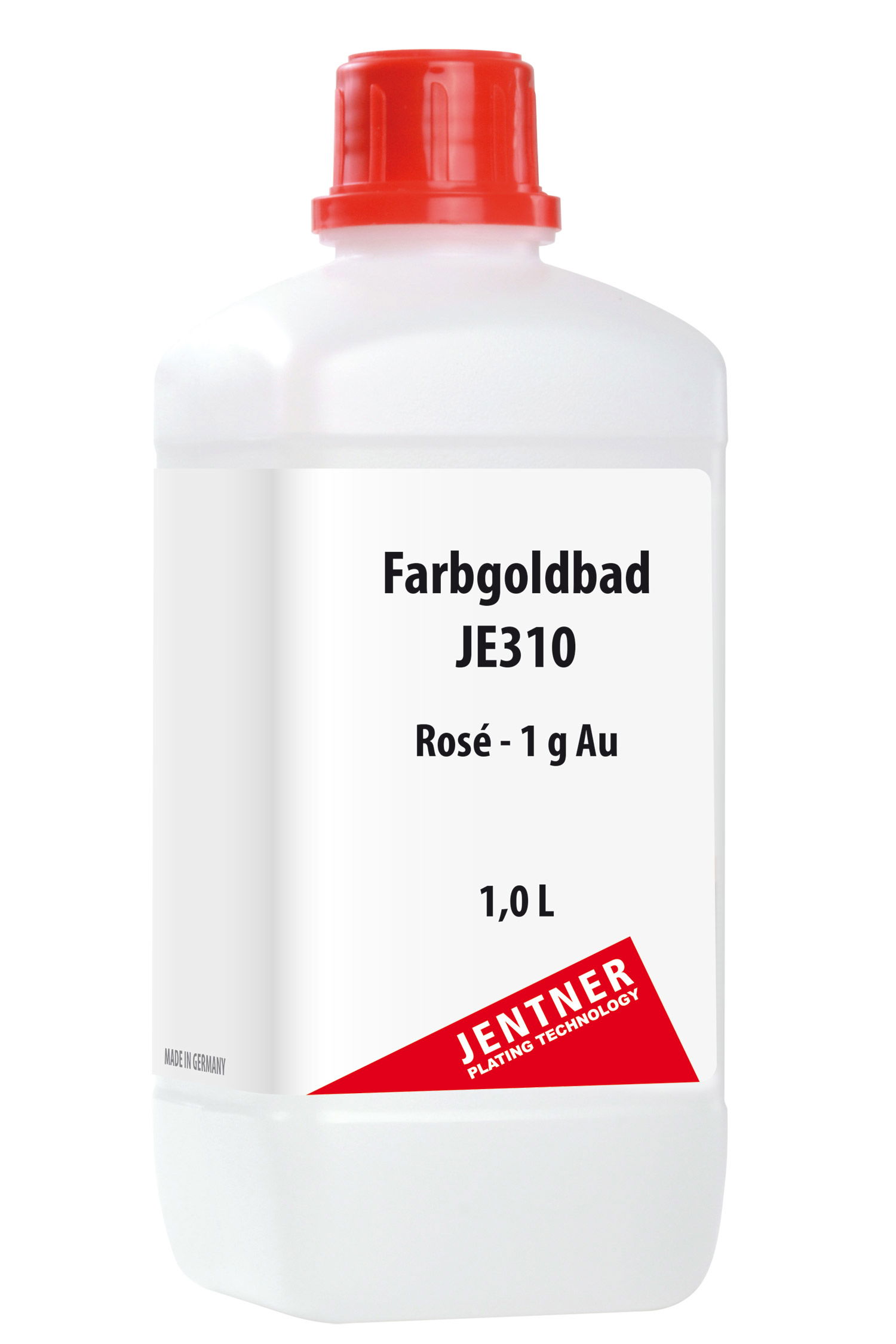

Colour Gold Bath JE310 - rosé -1 g/L Au
The color gold bath JE310 - rosé deposits decorative gold layers in rosé gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au

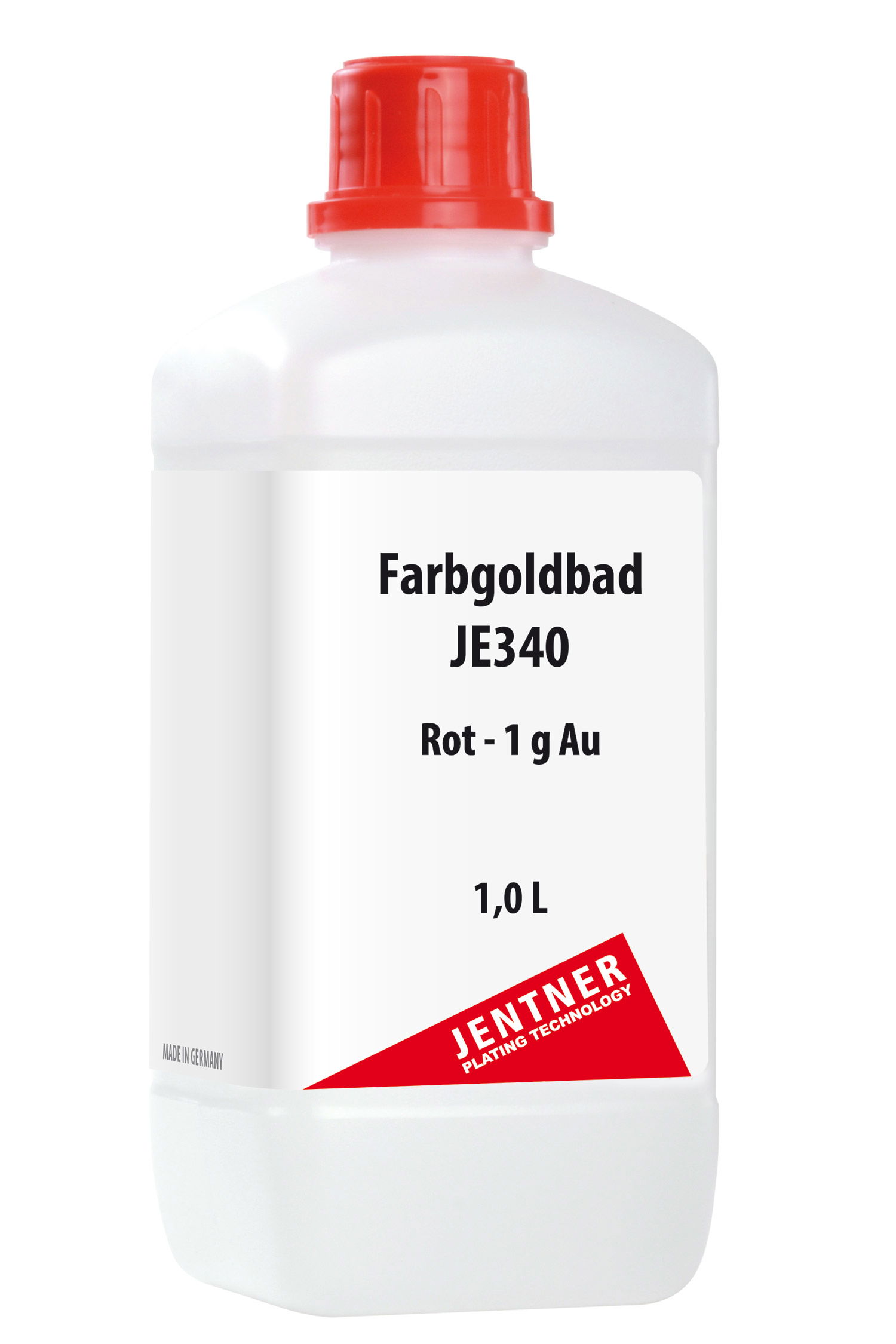

Colour Gold Bath JE340 - red - 1 g/L Au
The color gold bath JE340 deposits decorative gold layers in red gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au

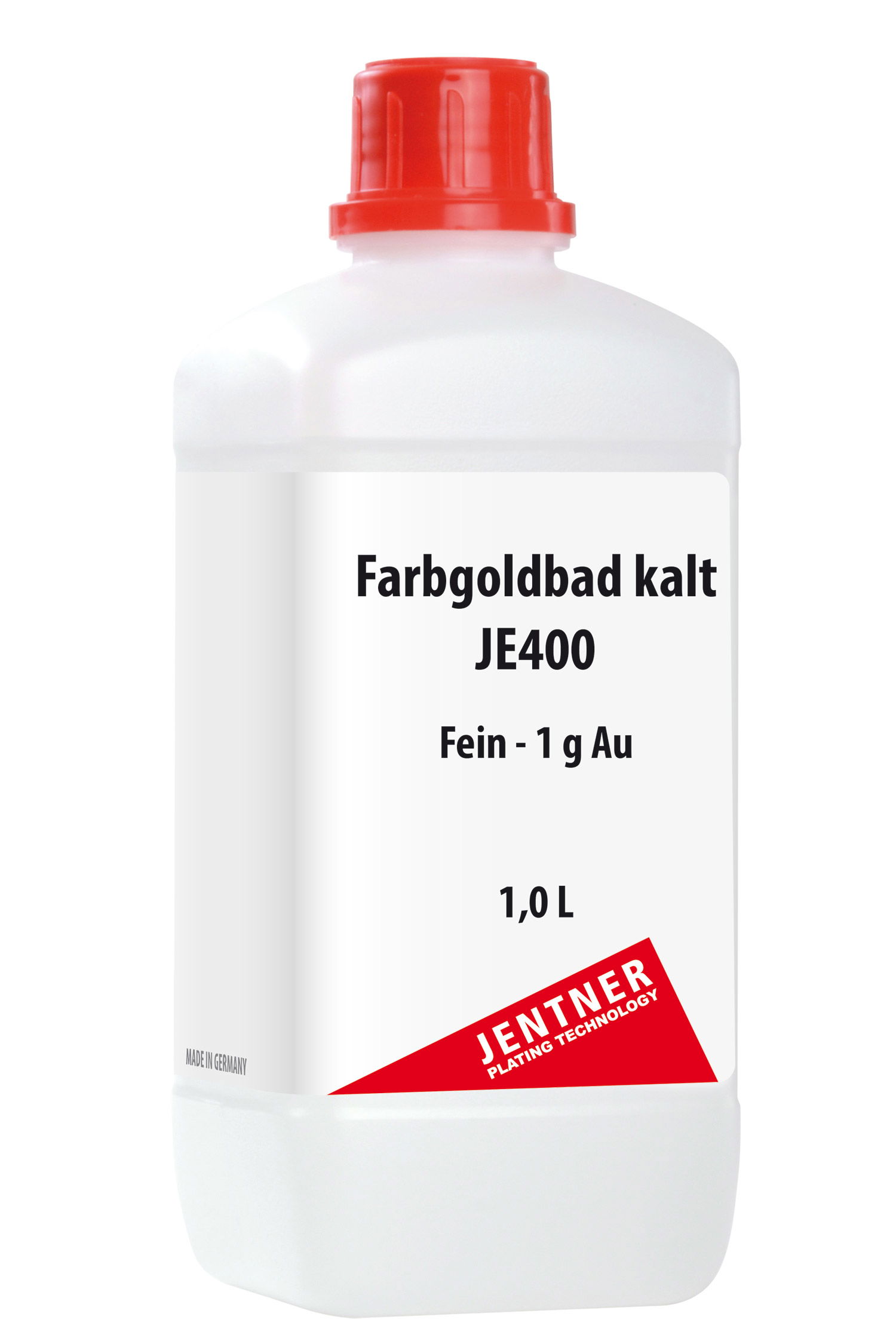

Colour Gold Bath cold JE400 - fine - 1 g/L Au
The color gold bath cold JE400 - fine deposits decorative gold layers in fine gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant colour. The color gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/LpH-value: 11,5 (11 - 12)Density: 1,065 g/ml (1,060 - 1,070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:Ready for use 1 g/L Au
Colour Gold Bath cold JE411 - 14ct - 1 g/L Au
The colour gold bath cold JE411 - 14ct deposits decorative gold layers in 14ct colour. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant colour. The colour gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/LpH-value: 11,5 (11 - 12)Density: 1,065 g/ml (1,060 - 1,070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15 - 20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:Ready for use 1 g/L Au

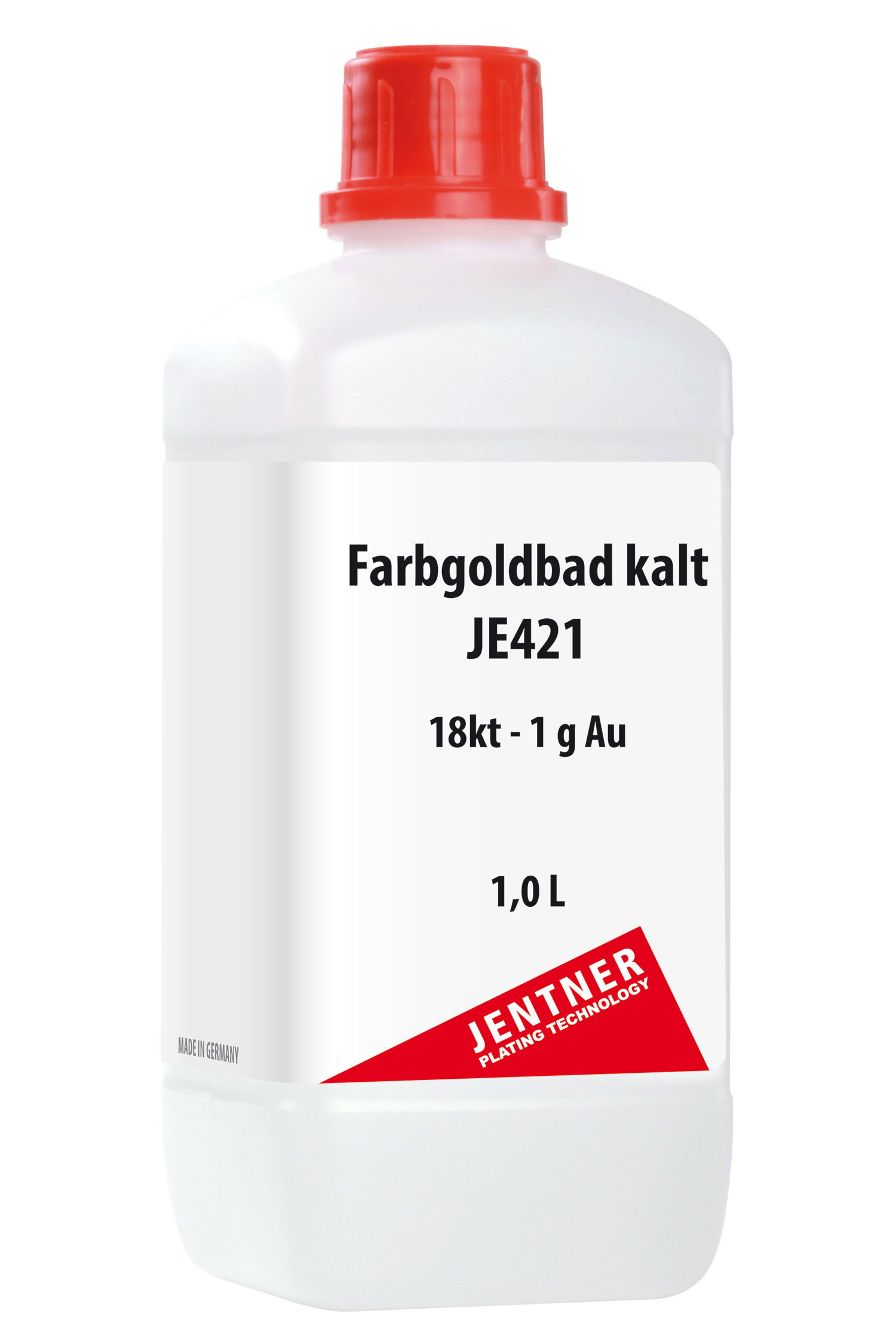

Colour Gold Bath cold JE421 - 18ct - 1 g/L Au
The color gold bath cold JE421 - 18ct deposits decorative gold layers in 18ct color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color. The color gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/LpH-value: 11,5 (11-12)Density: 1,065 g/ml (1,060-1,070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:Ready for use 1 g/L Au
Colour Gold Bath cold JE431 - rosé - 1 g/L Au
The color gold bath cold JE431 - rosé deposits decorative gold layers in rosé gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color. The color gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/lpH-value: 11.5 (11-12)Density: 1.065 g/ml (1.060-1.070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1 The color of the deposite may change due to deviations in the working conditions. Form of delivery:Ready for use 1 g/L Au

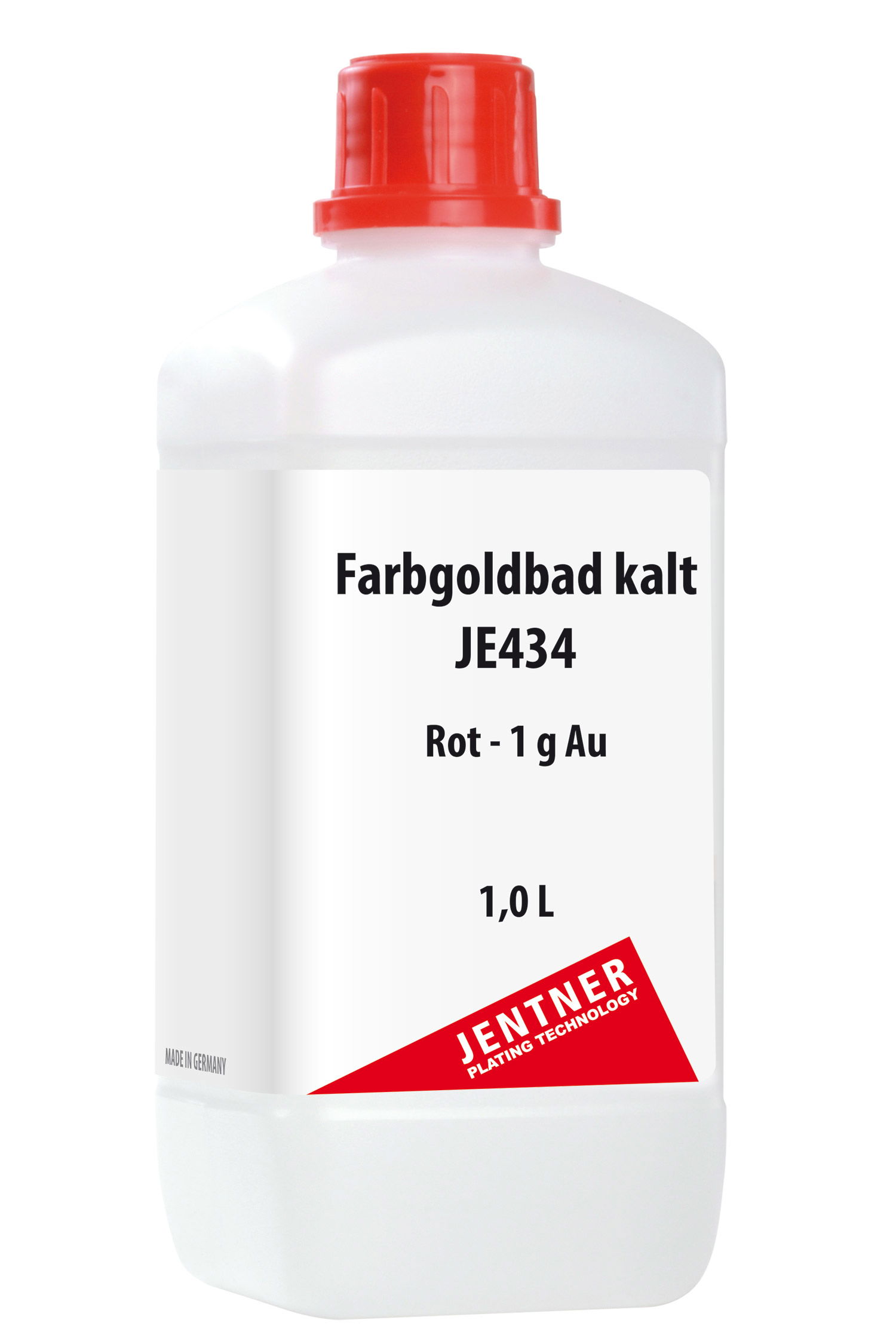

Colour Gold Bath cold JE434 - red - 1 g/L Au
The color gold bath cold JE434 - red deposits decorative gold layers in rosé gold color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color. The color gold baths of the product line JE4xx work with room temperature so there is no heating element needed.Operating data:Gold content: 1,0 g/LpH-value: 11.5 (11-12)Density: 1.065 g/ml (1.060-1.070)Operating conditions:Voltage: 3 VoltBath temperature: 20 °CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 LBath filtration: from 10 LAnode- /cathode surface: approx. 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:Ready for use 1 g/L Au

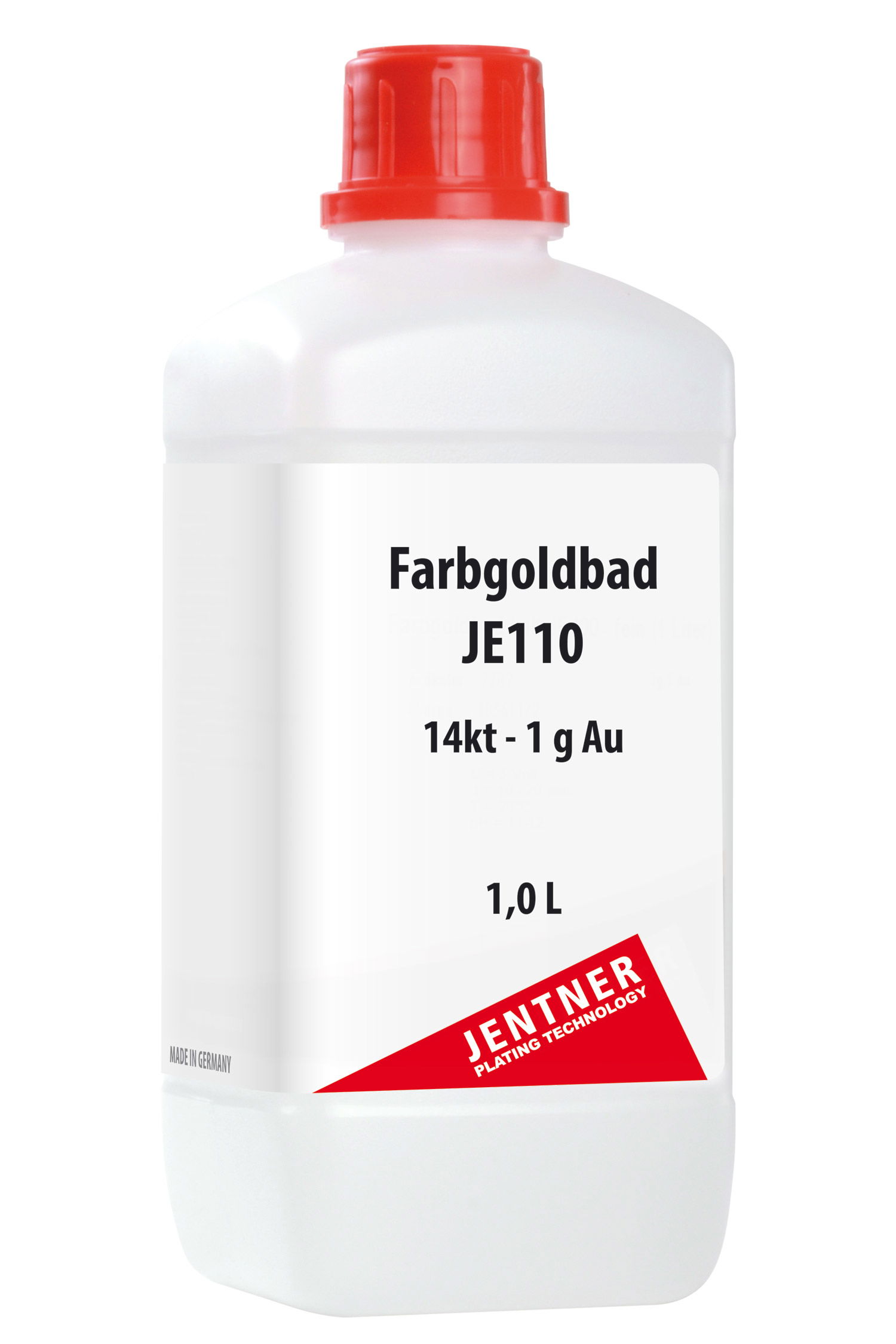

Colour Gold Bath JE110 - 14ct - 1 g/L Au
The color gold bath JE110 - 14ct deposits decorative gold layers in 14ct color. The attainable layer thickness is max. 0,1 micron. The gold electrolyte contains no free cyanide and therefore it can be deposited over a long period with a constant color.Operating data:Gold content: 1,0 g/LpH-value: 10,5 (10-11)Density: 1,035 g/ml (1,030-1,040)Operating conditions:Voltage: 6 VoltBath temperature: 60°CExposition time: 15-20 sec.Anodes: Stainless steelGoods movement: from 10 litreBath filtration: from 10 litreAnode- /cathode surface: 1:1The color of the deposite may change due to deviations in the working conditions.Form of delivery:-Ready for use 1 g/L Au

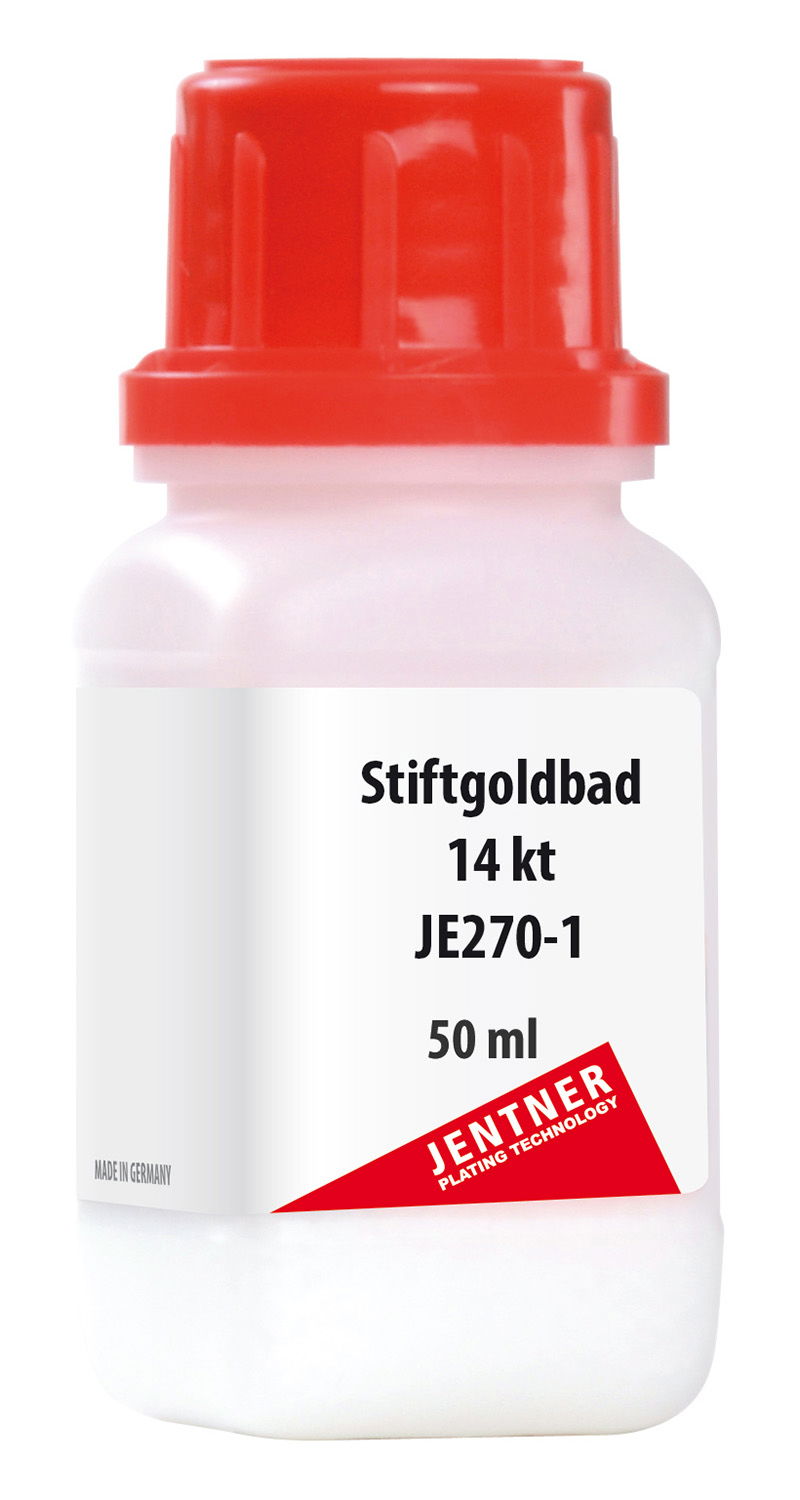

Gold Bath 14ct JE270-1 for pen (1 g/50ml Au)
The 50ml bottle of the gold bath JE270-1 - 14ct is especially suitable for partial plating, for multi-colour processeing and reparation or restoration. The deposited coatings have a nice 14ct gold colour. JE270-1 deposits uniform gold layers and has a strong colour consistency.The plating layer created by pen plating is very thin. If you would like a thicker layer, we recommend that you treat the goods in a normal electroplating bath.Gold content: 1g Au/50 mlVoltage: 6-8 VoltBath temperature: Room temperaturePlease note that this article is a dangerous good according to the legal guidelines. For this reason we need a copy of your business registration. Therefore we kindly ask you to send us the business registration in advance.

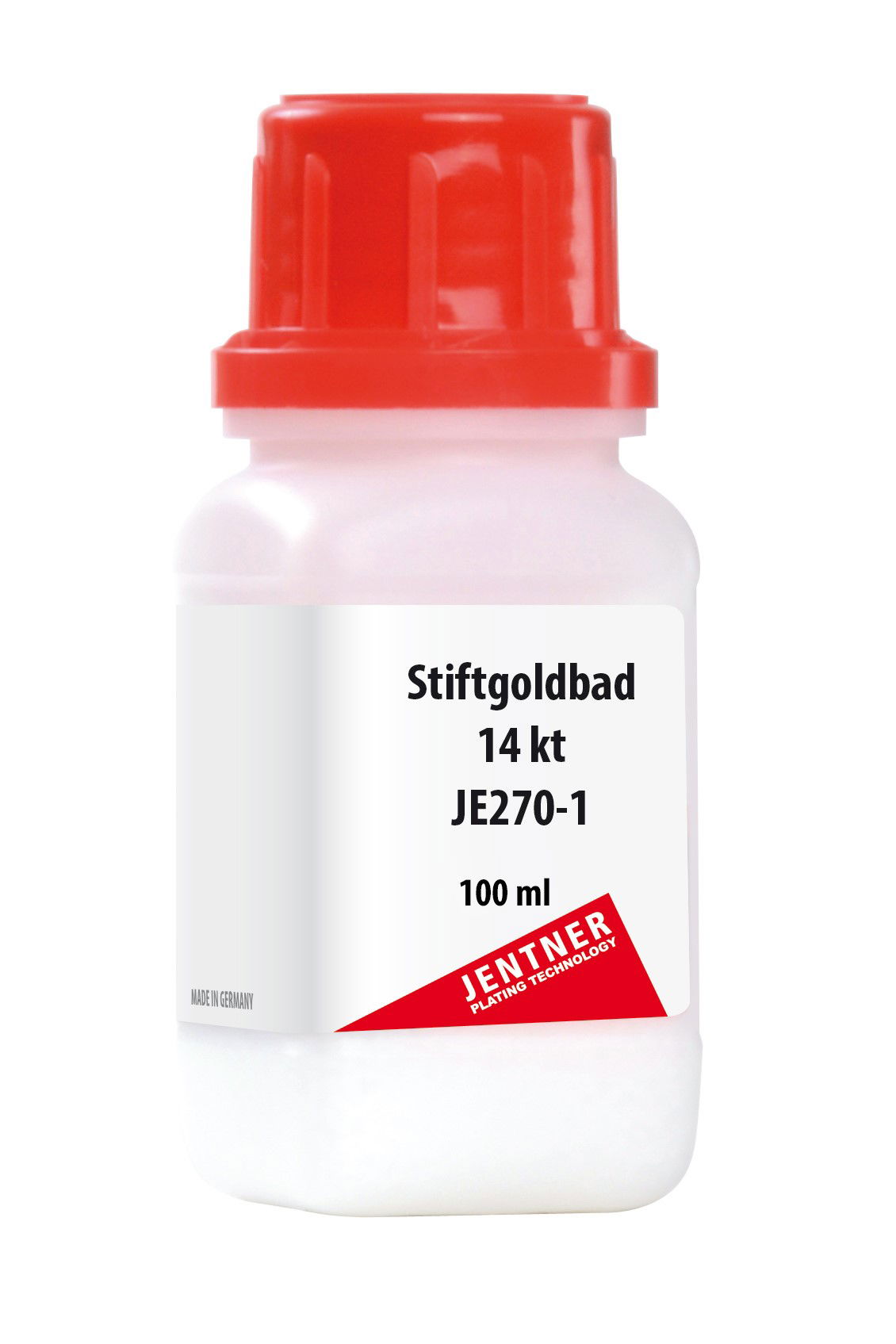

Gold Bath 14ct JE270-1 for pen (2 g/100ml Au)
The gold bath JE270-1 - 14ct is especially suitable for partial plating, for multi-colour processeing and reparation or restoration. The deposited coatings have a nice 14ct gold colour. JE270-1 deposits uniform gold layers and has a strong colour consistency.The plating layer created by pen plating is very thin. If you would like a thicker layer, we recommend that you treat the goods in a normal electroplating bath.Gold content: 2g Au/100 mlVoltage: 6-8 VoltBath temperature: Room temperaturePlease note that this article is a dangerous good according to the legal guidelines. For this reason we need a copy of your business registration. Therefore we kindly ask you to send us the business registration in advance.

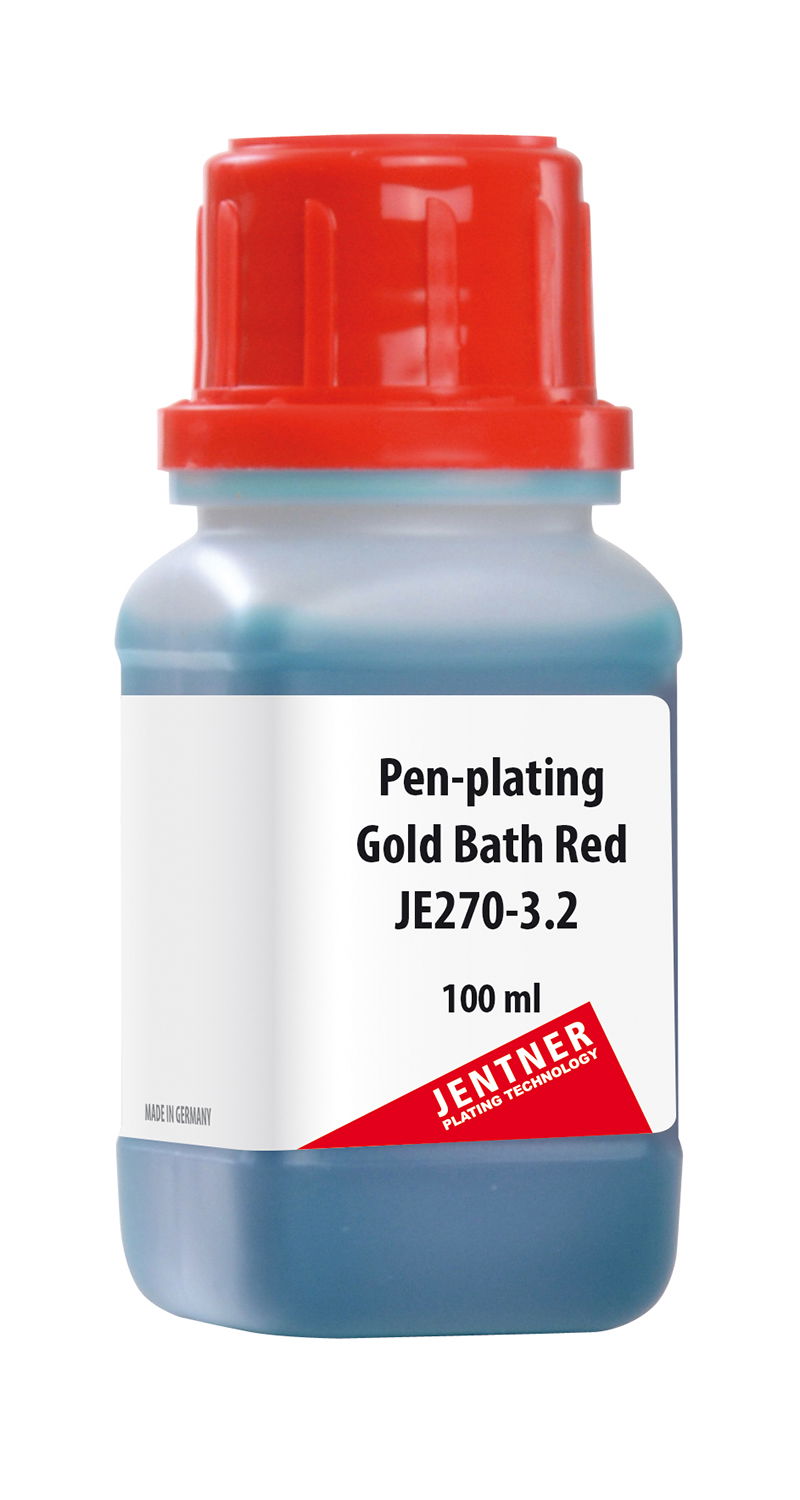

Gold Bath red JE270-3.2 for pen (2 g/100ml Au)
The gold bath red JE270 - 3.2 for pen is especially suitable for partial plating, for multi-colour processing and reparation or restoration. The deposited coatings have a nice red gold colour. JE270-3.2 deposits uniform gold layers and has a strong colour consistency.The plating layer created by pen plating is very thin. If you would like a thicker layer, we recommend that you treat the goods in a normal electroplating bath.Gold content: 2 g/100ml AuVoltage: 6-8 VoltBath temperature: Room temperaturePlease note that this article is a dangerous good according to the legal guidelines. For this reason we need a copy of your business registration. Therefore we kindly ask you to send us the business registration in advance.

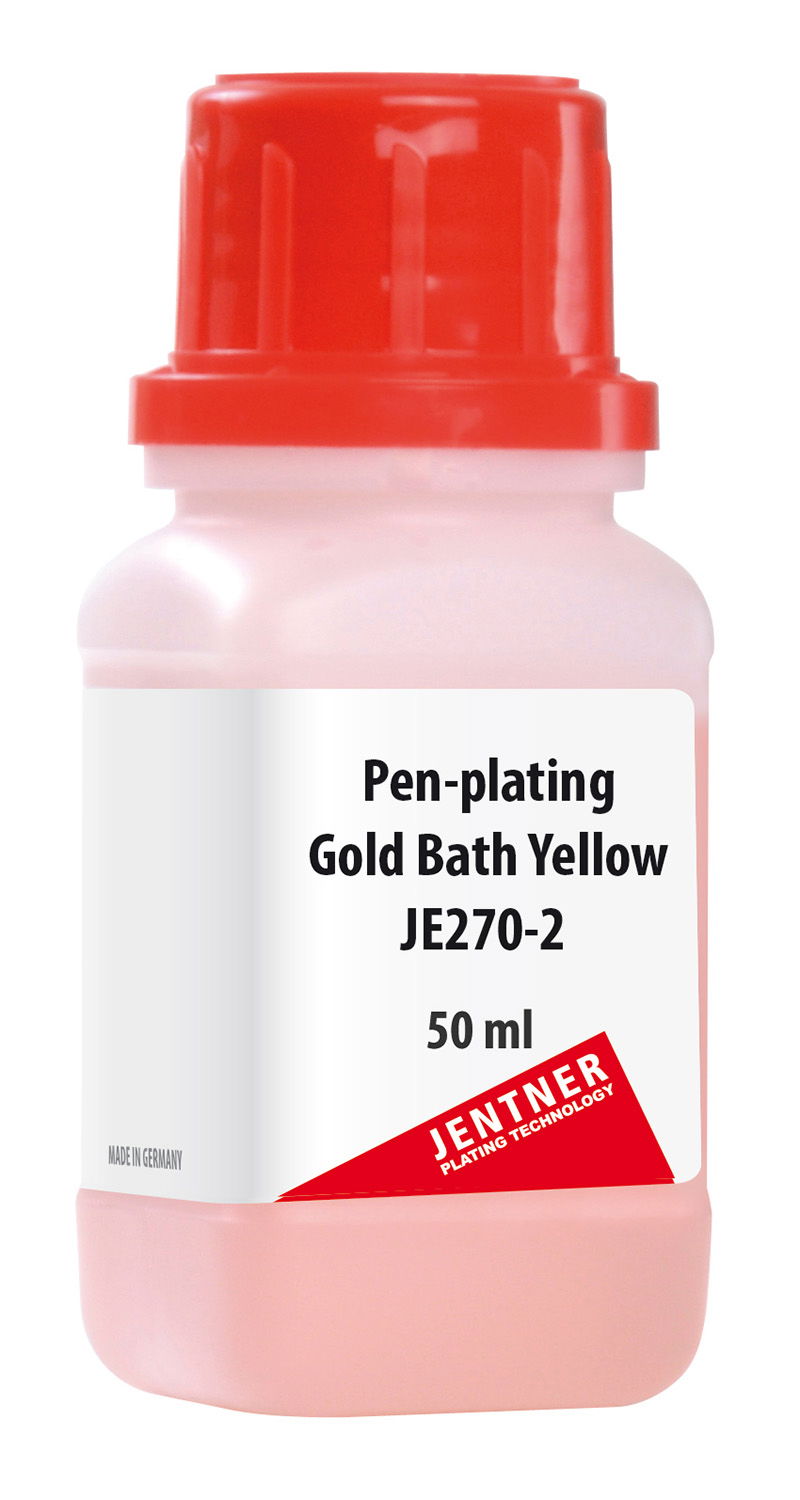

Gold Bath yellow JE270-2 for pen (1 g/50ml Au)
The gold bath JE270-2 is especially suitable for partial plating, for multi-colour processeing and reparation or restoration. The deposited coatings have a nice yellow gold colour. JE270-2 deposits uniform gold layers and has a strong colour consistency.The plating layer created by pen plating is very thin. If you would like a thicker layer, we recommend that you treat the goods in a normal electroplating bath.Gold content: 1 g/50ml AuVoltage: 6-8 VoltBath temperature: Room temperaturePlease note that this article is a dangerous good according to the legal guidelines. For this reason we need a copy of your business registration.Therefore we kindly ask you to send us the business registration in advance.

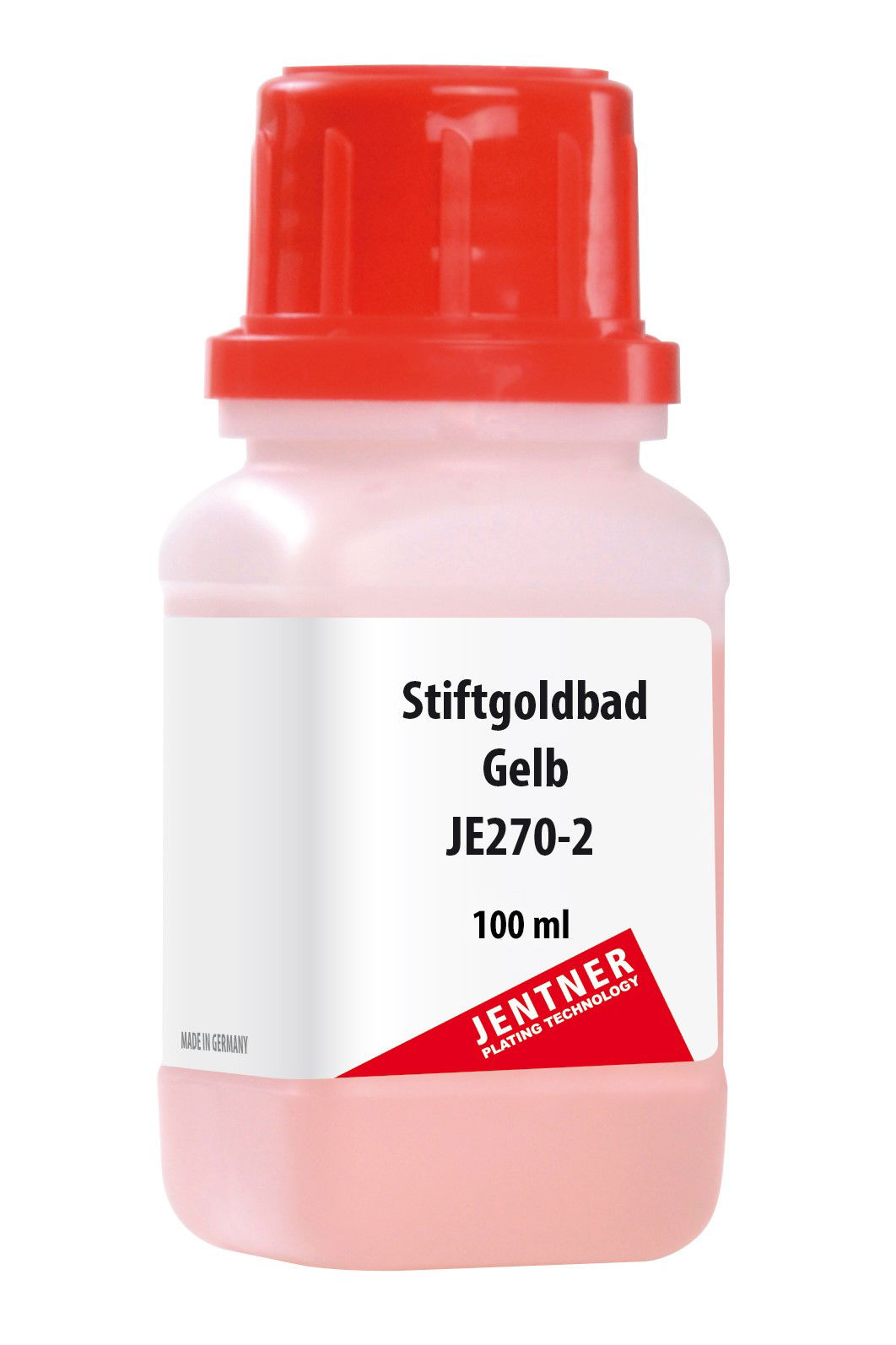

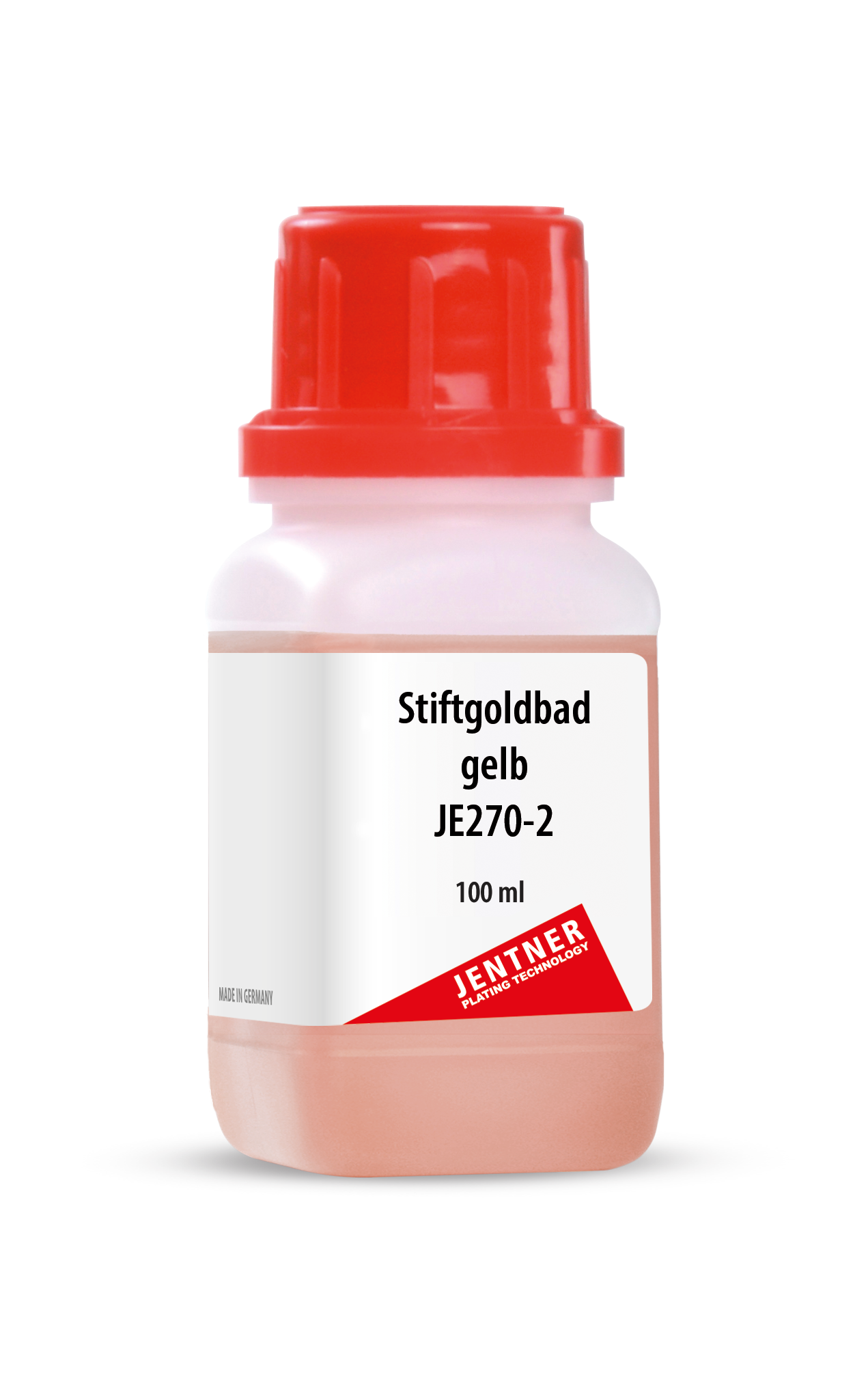

Gold Bath yellow JE270-2 for pen (2 g/100ml Au)
The gold bath JE270-2 is especially suitable for partial plating, for multi-colour processeing and reparation or restoration. The deposited coatings have a nice yellow gold colour. JE270-2 deposits uniform gold layers and has a strong colour consistency.The plating layer created by pen plating is very thin. If you would like a thicker layer, we recommend that you treat the goods in a normal electroplating bath.Gold content: 2g/100ml AuVoltage: 6-8 VoltBath temperature: Room temperaturePlease note that this article is a dangerous good according to the legal guidelines. For this reason we need a copy of your business registration.Therefore we kindly ask you to send us the business registration in advance.

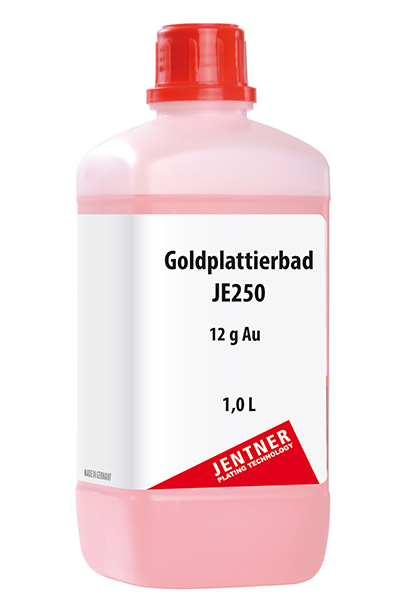

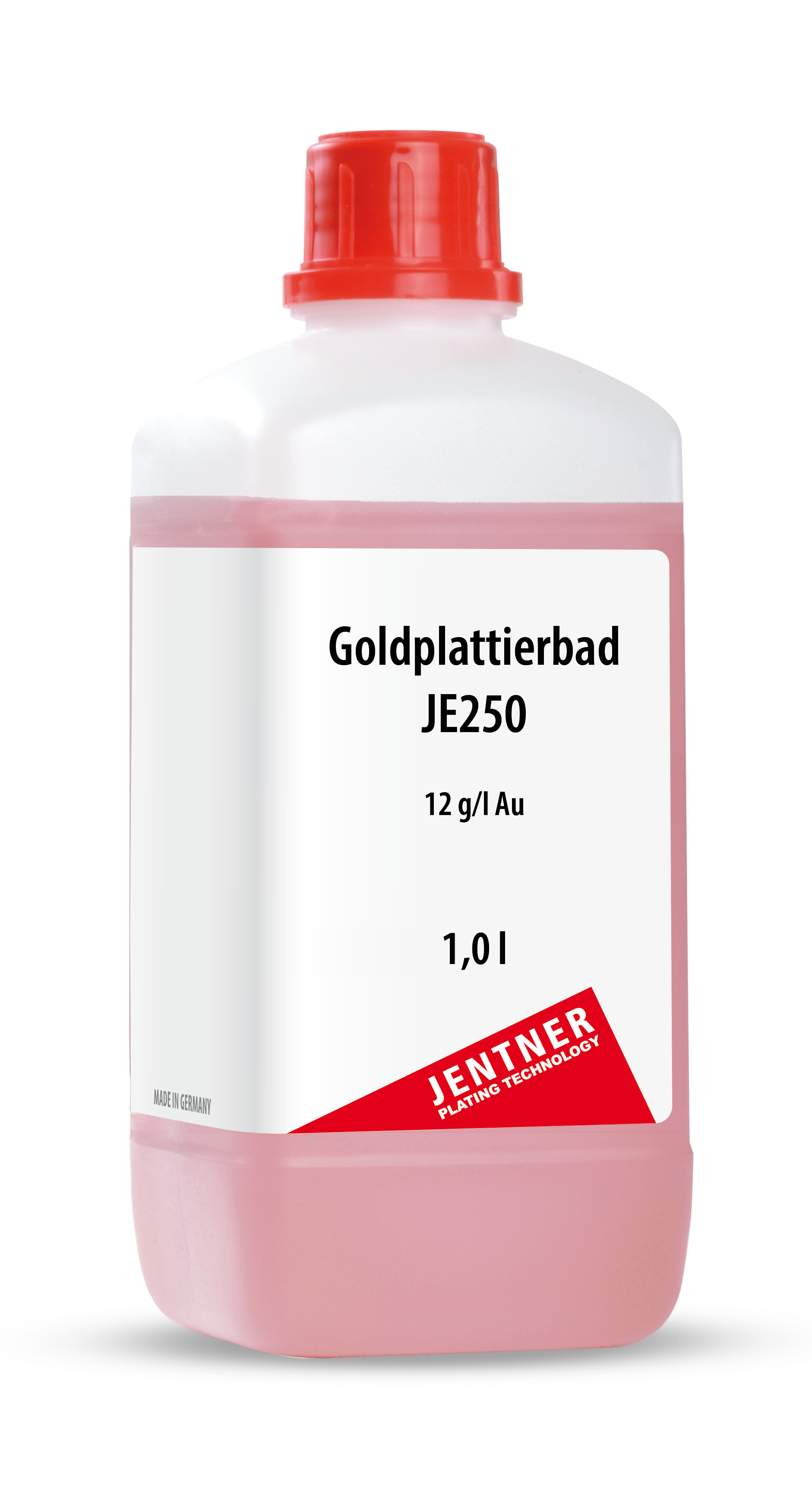

Gold Plating Bath JE250 - 12 g/L Au
The micron gold plating bath JE250 is suitable for an excellent deposition of bright and hard gold layers up to 8 µm. It is suitable for technical and decorative applications.Operating data:Gold content: 12 g/L AupH-value: 4,0 (3,8 - 4,2)Density: 1,035 g/ml (1,030 - 1,050) Deposition data:Hardness: 150 - 220 HVLayer thickness: max. 8 µmFineness of the gold layer: ca. 99,5 % AuOperating conditions:Voltage: 2,5 - 4 VoltTemperature: 20 - 40 °CAnodes: Platinized titaniumAnode/Cathode surface: approx. 1 : 1Goods movement: requiredPower density: approx. 1 - 2,5 A/dm2Bath filtration: from 10 literDeposition rate: approx. 22 mg/Amin

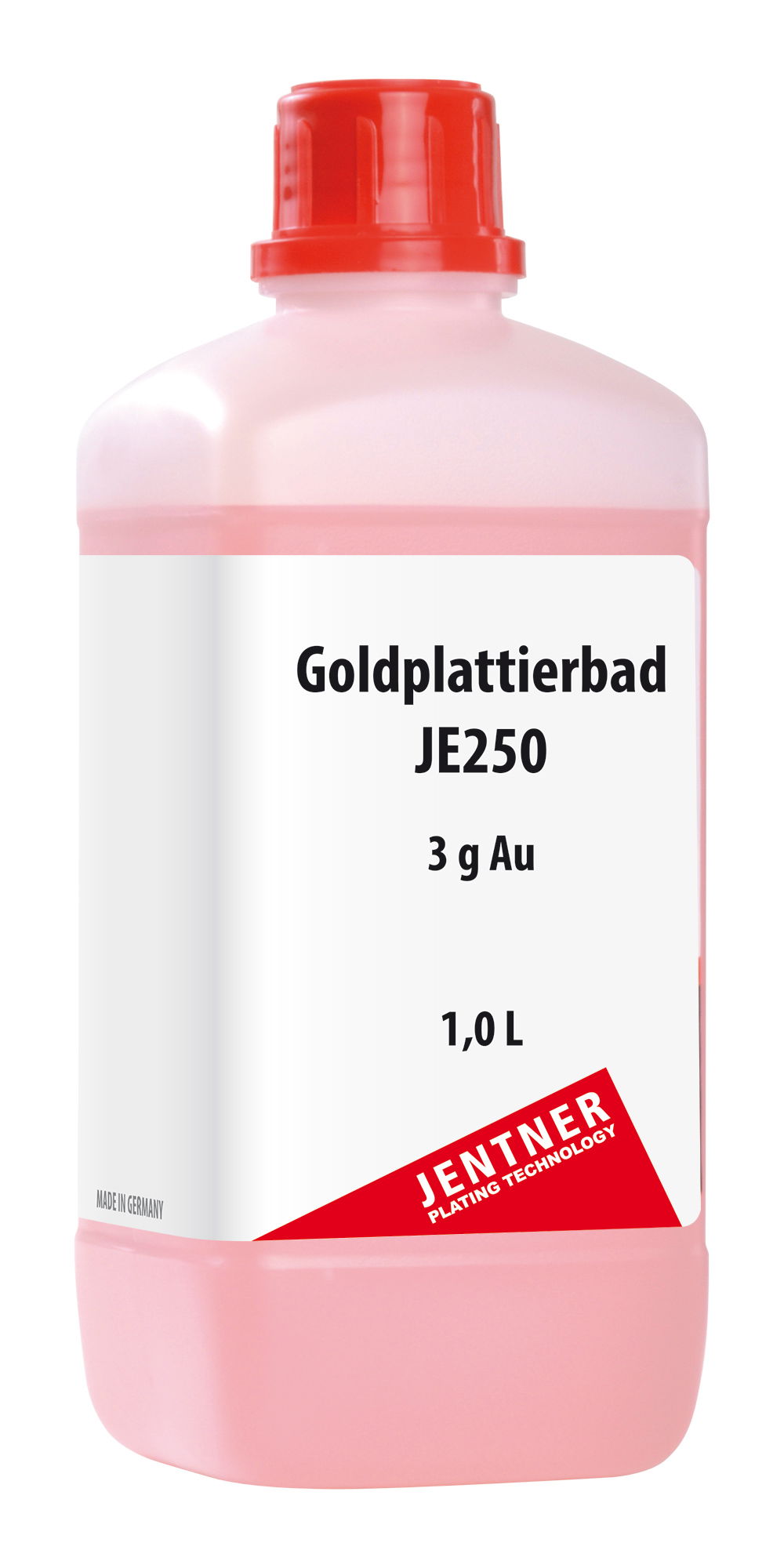

Gold Plating Bath JE250 - 3 g/L Au
The micron gold plating bath JE250 is suitable for an excellent deposition of bright and hard gold layers up to 8 µm. It is suitable for technical and decorative applications.Operating data:Gold content: 3 g/L AupH-value: 4,0 (3,8 - 4,2)Density: 1,035 g/ml (1,030 - 1,050) Deposition data:Hardness: 150 - 220 HVLayer thickness: max. 8 µm Fineness of the gold layer: ca. 99,5 % AuOperating conditions:Voltage: 2,5 - 4 VoltTemperature: 20 - 40 °CAnodes: Platinized titaniumAnode/Cathode surface: approx. 1 : 1Goods movement: required Power density: approx. 1 - 2,5 A/dm2Bath filtration: from 10 liter Deposition rate: approx. 22 mg/Amin

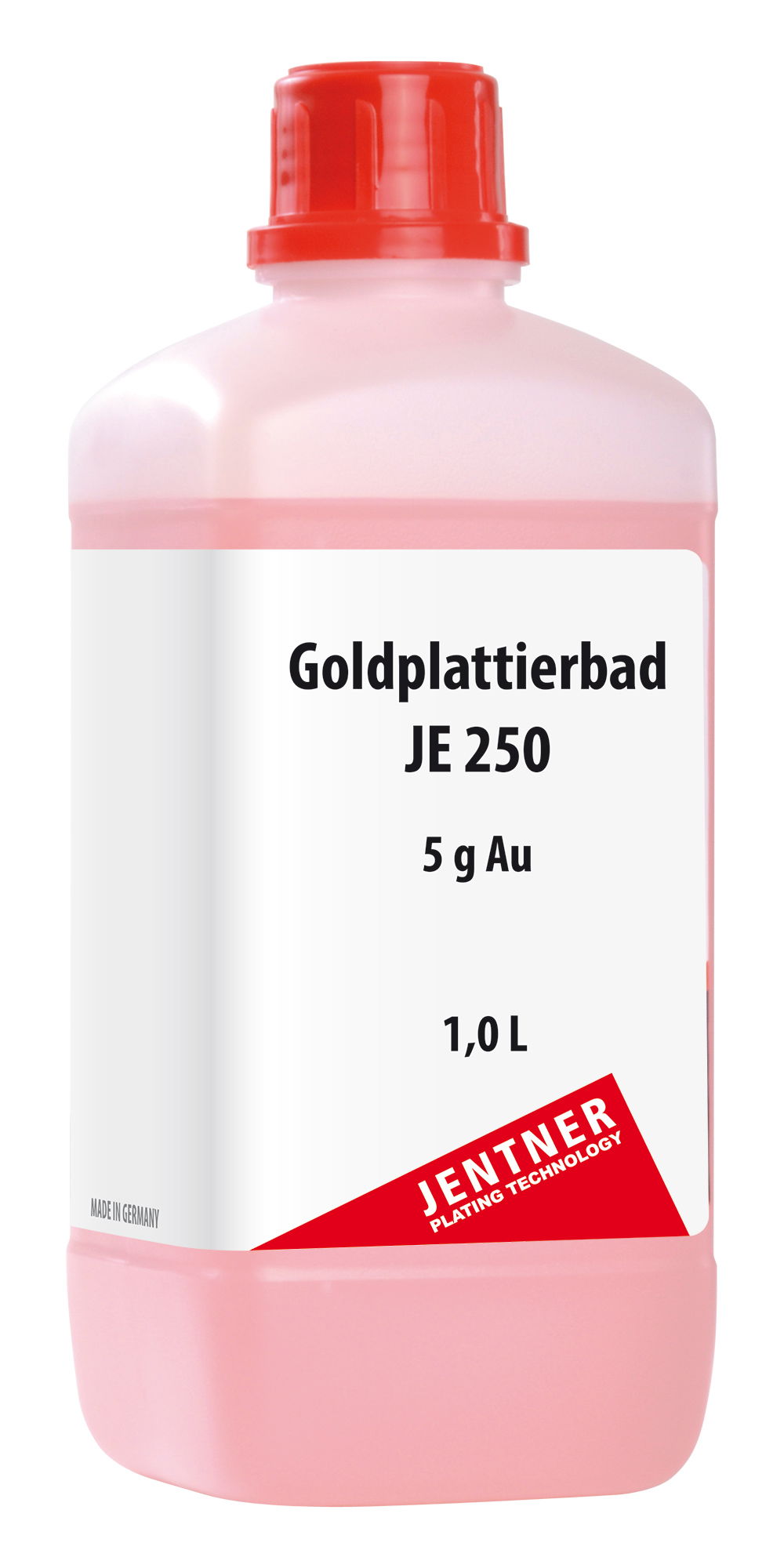

Gold Plating Bath JE250 - 5 g/L Au
The micron gold plating bath JE250 is suitable for an excellent deposition of bright and hard gold layers up to 8 µm. It is suitable for technical and decorative applications.Operating data:Gold content: 5 g/L AupH-value: 4,0 (3,8 - 4,2)Density: 1,035 g/ml (1,030 - 1,050) Deposition data:Hardness: 150 - 220 HVLayer thickness: max. 8 µmFineness of the gold layer: ca. 99,5 % AuOperating conditions:Voltage: 2,5 - 4 VoltTemperature: 20 - 40 °CAnodes: Platinized titaniumAnode/Cathode surface: approx. 1 : 1Goods movement: requiredPower density: approx. 1 - 2,5 A/dm2Bath filtration: from 10 literDeposition rate: approx. 22 mg/Amin
